Flarespace Ford Transit Campervan Body Flares (130"WB)

$ 1,799.00

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Typically ships in 3-4 weeks.

Looking to sleep sideways in your Ford Transit 130"WB camper van? These Flarespace Ford Transit Campervan Body Flares replace the stock rear upper body panels in your medium- or high-roof Transit van, providing extra lateral space to enable you to sleep sideways in your campervan.

This cost-efficient & stealthy van modification maximizes your van's interiors and allows you to reconfigure your van’s floor plans to place your bed widthwise, rather than lengthwise.

Flares are made-to-order and sold in pairs (pricing includes a driver's side Flare and a passenger-side Flare), and once installed, you’ll have around 80 inches of space to sleep sideways in your Ford Transit 130”. Flares are a must-have van upgrade and are DIY friendly, lightweight, and ultra-durable. Take the first step in converting your cargo van into an adventure van and get your Flares!

Install these Flarespace flares, and you'll be able to have an 80"- 81.5" wide sleeping platform and a very comfortable night's sleep, without interfering with any of the doors on the van.

The extra space saved from orienting the bed sideways (almost 24") can be used to store bikes, add extra cabinetry or whatever else you need.

Note: Flares are only sold in pairs (one passenger-side, one driver-side), flares are not sold individually. Shipping on this item is $99.

All Flarespace sales may be canceled within 24 hours of ordering. Fiberglass products may not be returned, exchanged or canceled after 24 hours. All other Flarespace products may be evaluated for exchange or return on a case by case basis.

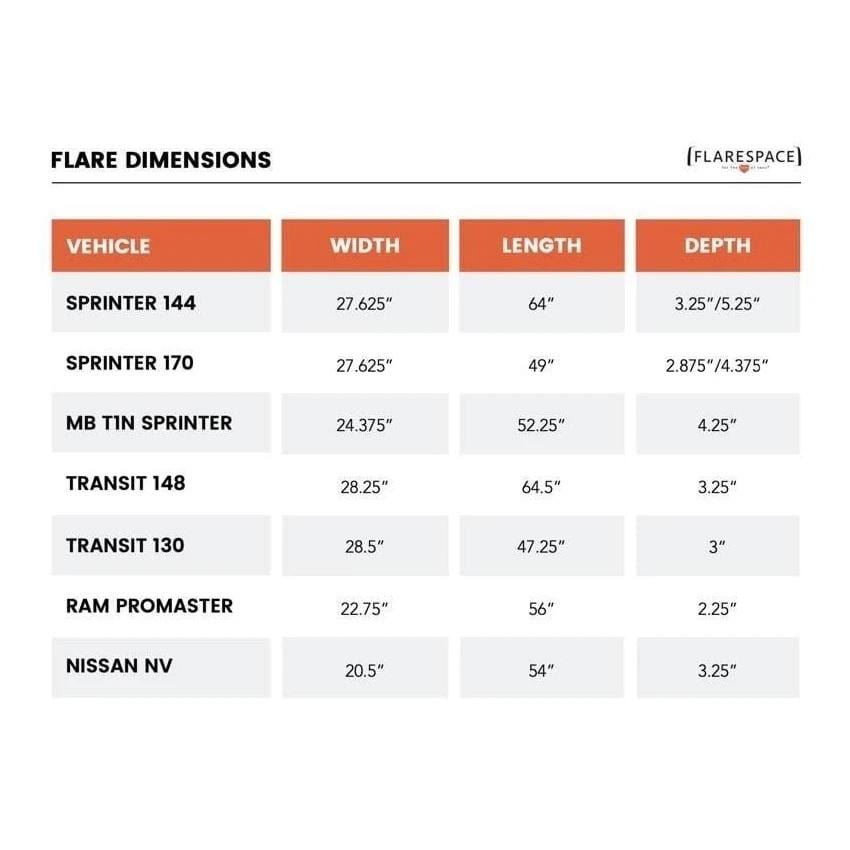

Specifications: Flarespace Ford Transit 130"WB Campervan Body Flares

Dimensions	28.5"H x 47.25"W x 3"D Flares are tapered: narrower at front, wider at rear.
Material	Fiberglass (Polyester resin)
Finish	Dark gray 300-grit gelcoat, ready for paint

Key Features: Flarespace Ford Transit 130"WB Campervan Body Flares

Flares are made of polyester resin (fiberglass)
Package comes with two unpainted flares, approved 3M installation materials, and detailed installation instructions
Flares add extra width to the rear of your Transit campervan
These flares, which come in a set of two, are designed to fit medium- or high-roof Ford Transit 130"WB vans (2015-current models). Will not fit low-roof Ford Transit van or Transit Connect models.
Proudly made in the USA by Flarespace.
Flares are made to order, we'll check lead times when you order.

FAQ: Flarespace Ford Transit Campervan Body Flares (130"WB)

Who can install flares? Campervan HQ can provide you with a list of trained installers in your area, or any professional auto body shop can paint and install flares.

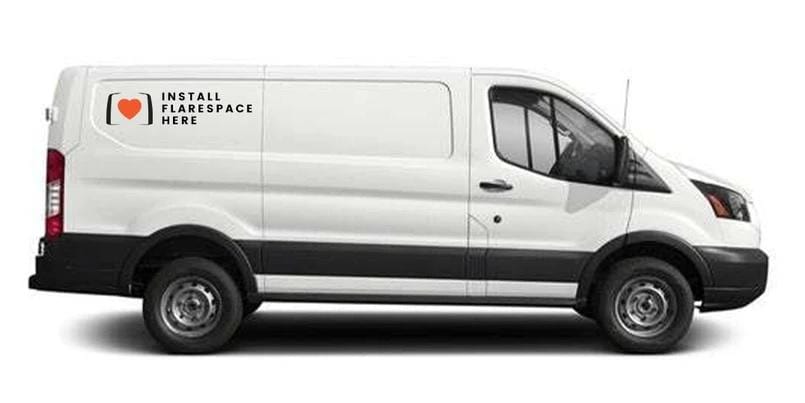

How are they installed? Your installer will paint your flares to match the color of your Transit van. The rear quarter panel is cut out along the factory lines, with the same size cut out as a window. The flares are glued in using the supplied 3M adhesive and sealant. Installers are supplied with detailed step-by-step instructions, including a video and written instructions. Install takes about 4 hours, plus a day to cure.
Does the sliding door need to be modified? The stock Transit sliding door will open fully without modifications. This also applies for slider doors with CR Laurence windows and T-vent window knobs.
Will the rear doors still open 270 degrees? If you install an extended door stopper on the rear door, the Transit's rear doors can still be opened fully without touching the flares.

Vehicle fitment

Product type: Camper van window
Vehicle: Ford Transit
Wheelbase: 130"WB
Side: Driver side
Window position: Sliding door
Window type: Opening window
Opening style: T-vent
Screen: This is an opening window. The product listing does not state that a screen is included.
Summary: Fits Ford Transit. Confirm vehicle model, year range, wheelbase, side, window position, cutout dimensions, install type, opening style before ordering. Product listing notes: Looking to sleep sideways in your Ford Transit 130"WB camper van? These Flarespace Ford Transit Campervan Body Flares replace the stock rear upper body panels in your medium- or high-roof Transit van, providing extra lateral space to enable you to sleep sideways in your campervan. These flares, which come in a set of two, are designed to fit medium- or high-roof Ford Transit 130"WB vans (2015-current models). Will not fit low-roof Ford Transit van or Transit Connect models. How are they installed? Your installer will paint your flares to match the color of your Transit van. The rear quarter panel is cut out along the factory lines, with the same size cut out as a window. The flares are glued in using the supplied 3M adhesive and sealant. Installers are supplied with detailed step-by-step instructions, including a video and written instructions. Install takes about 4 hours, plus a day to cure. Window type: Opening window.
Install requirements: Confirm whether this window is clamp-in or bonded/glue-in before ordering. Glue-in windows require urethane adhesive, primer unless using primerless adhesive, and trim lock sized for the total window circumference.
Fitment exceptions: Ford Transit windows are for 2014-current full-size Transit vans and do not fit Transit Connect. Position-specific windows must only be installed in the indicated position.

Fitment FAQ

What does this Flarespace Ford Transit Campervan Body Flares (130"WB) fit?

This Flarespace Ford Transit Campervan Body Flares (130"WB) fits Ford Transit applications where the listed fitment details match.

Is this product vehicle-specific?

This window fits Ford Transit. Confirm side, position, wheelbase, roof height, generation, install type, and window operation before ordering.

What should I verify before ordering?

Confirm vehicle model, year range, wheelbase, side, window position, cutout dimensions, install type, opening style before checkout.

What installation details matter?

Confirm whether this is a clamp-in or bonded/glue-in installation. Confirm cutout dimensions, wall thickness, trim requirements, and clearances before ordering.

Who is this product best for?

This camper van window is intended for cargo van window upgrades.

Do Campervan HQ van windows come with instructions?

Most van windows are sold for DIY van builders and may not include manufacturer instructions because many manufacturers assume installation by someone familiar with van window installation. Check the Campervan HQ van window installation blog for guidance. For CR Laurence van windows, you can also search YouTube for CR Laurence window install videos.

Do van windows require adhesive and primer?

Van windows are generally either bonded/glue-in or clamp-in. Bonded windows require urethane adhesive and primer unless a primerless adhesive is specified. Clamp-in windows typically do not require primer or adhesive. Both styles require an existing opening, so cargo vans without windows require the correct cutout before installation.

Do Campervan HQ van windows ship for free?

Most van windows do not ship free because large windows often require truck freight or special handling. When available, warehouse pickup can reduce or refund shipping costs. For large multi-item orders, contact Campervan HQ for an individual quote.

What should I check when a van window is delivered?

Inspect the window shipment before the delivery driver leaves. If there is damage, have the driver note it on the Bill of Lading and provide a signed copy. Without signed damage notation at delivery, Campervan HQ may not be able to make a shipping damage claim.

What is the return process for damaged or defective van windows?

For delivery damage, Campervan HQ needs a signed Bill of Lading showing the damage and photos of the damage. For a defective van window, Campervan HQ needs photos of the defect and will request a Return Authorization. In either case, re-package the window in the original box and tape the invoice number or return authorization number to the outside of the box.
