RoamLabX L-Track Back Framing

Typically ships in 5-10 business days.

$ 125.00
New arrival
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

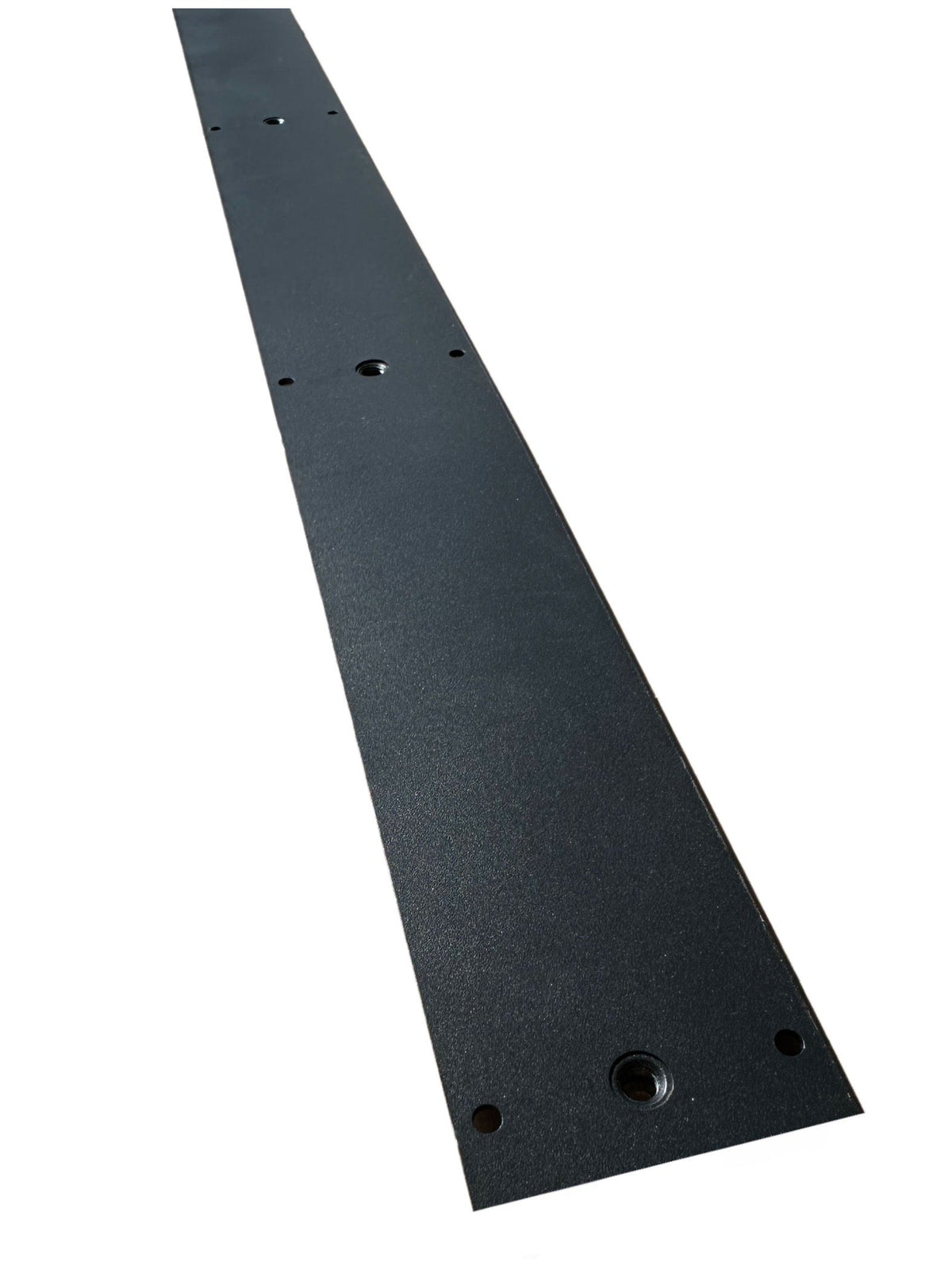

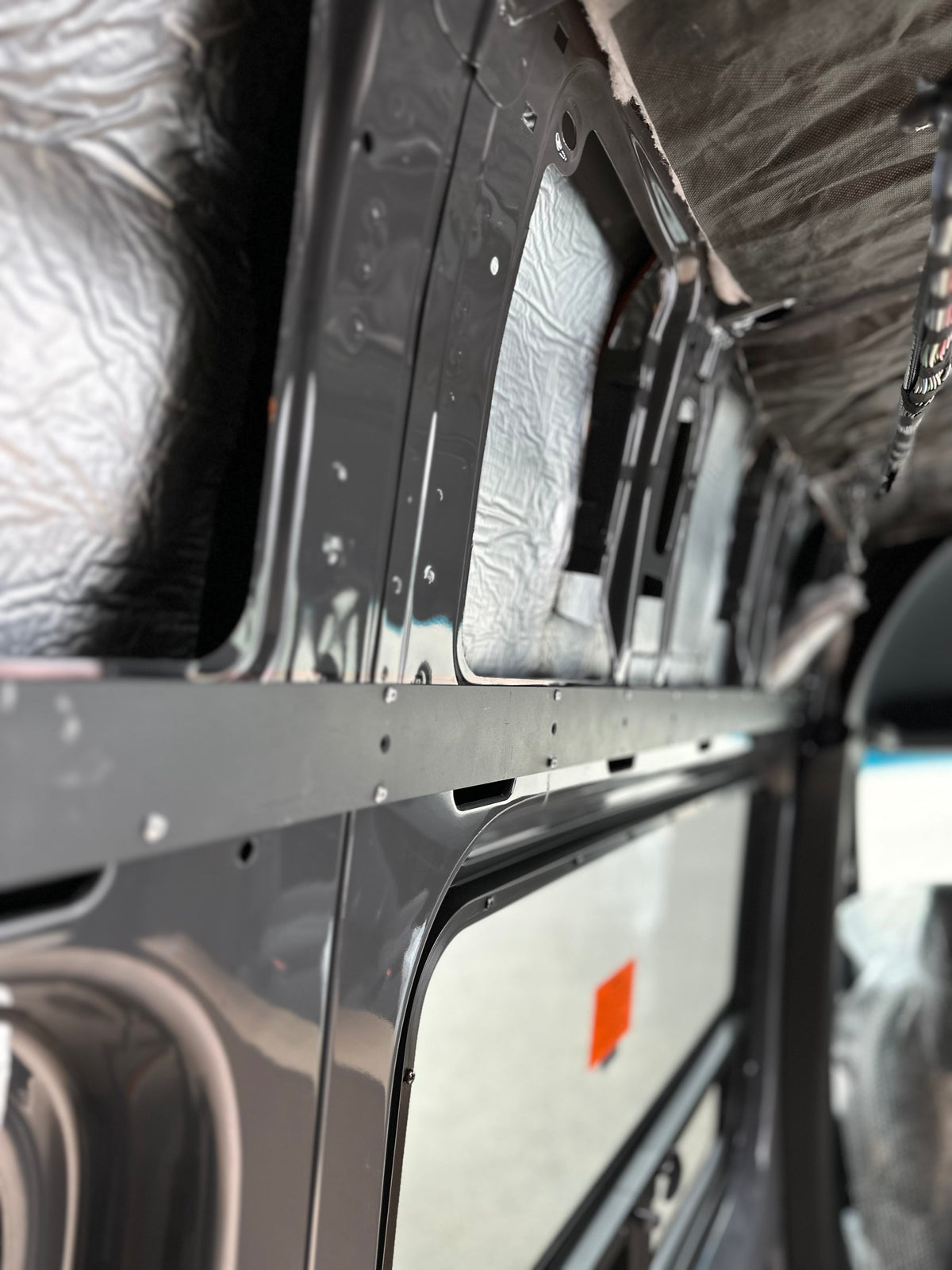

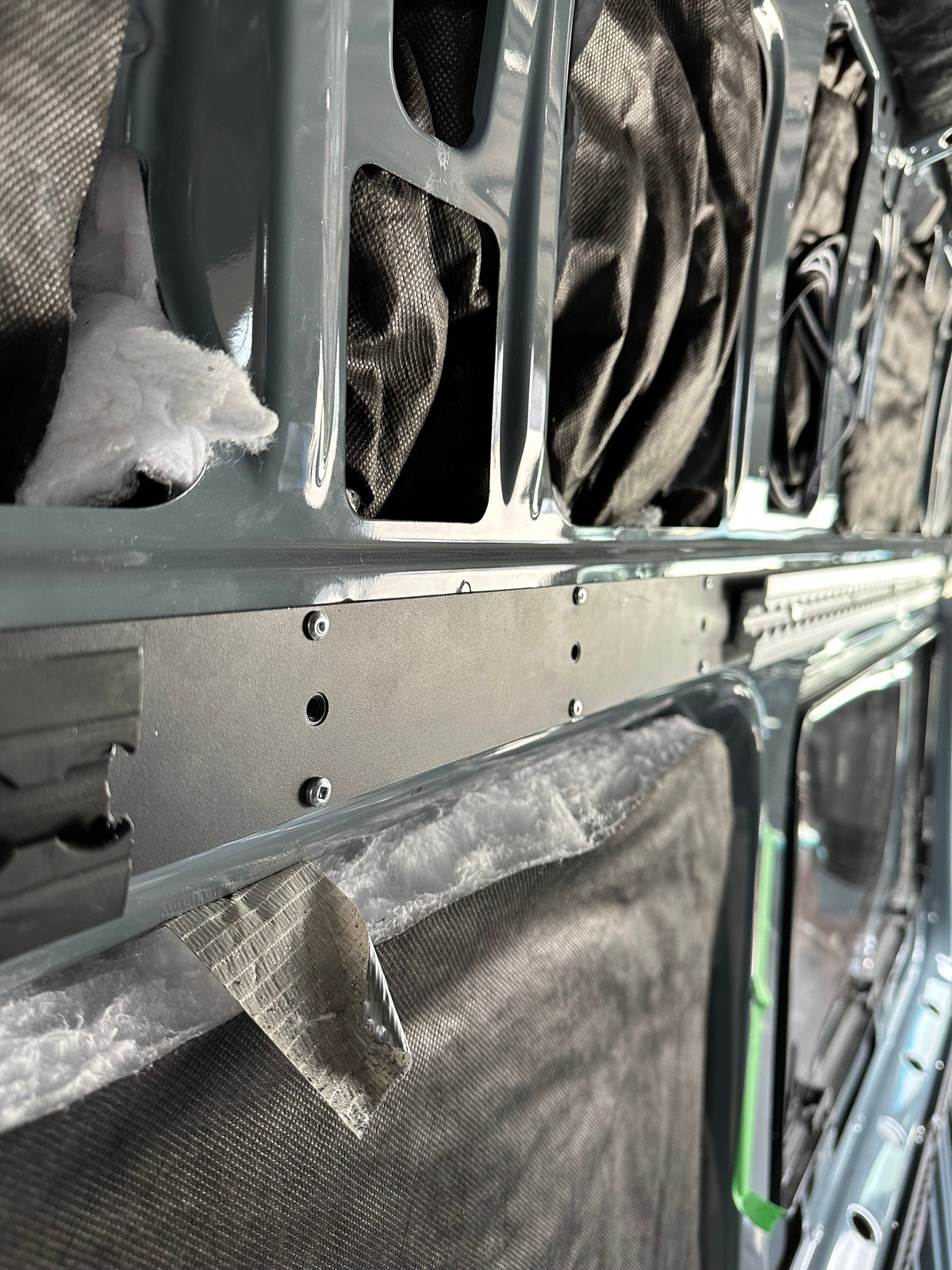

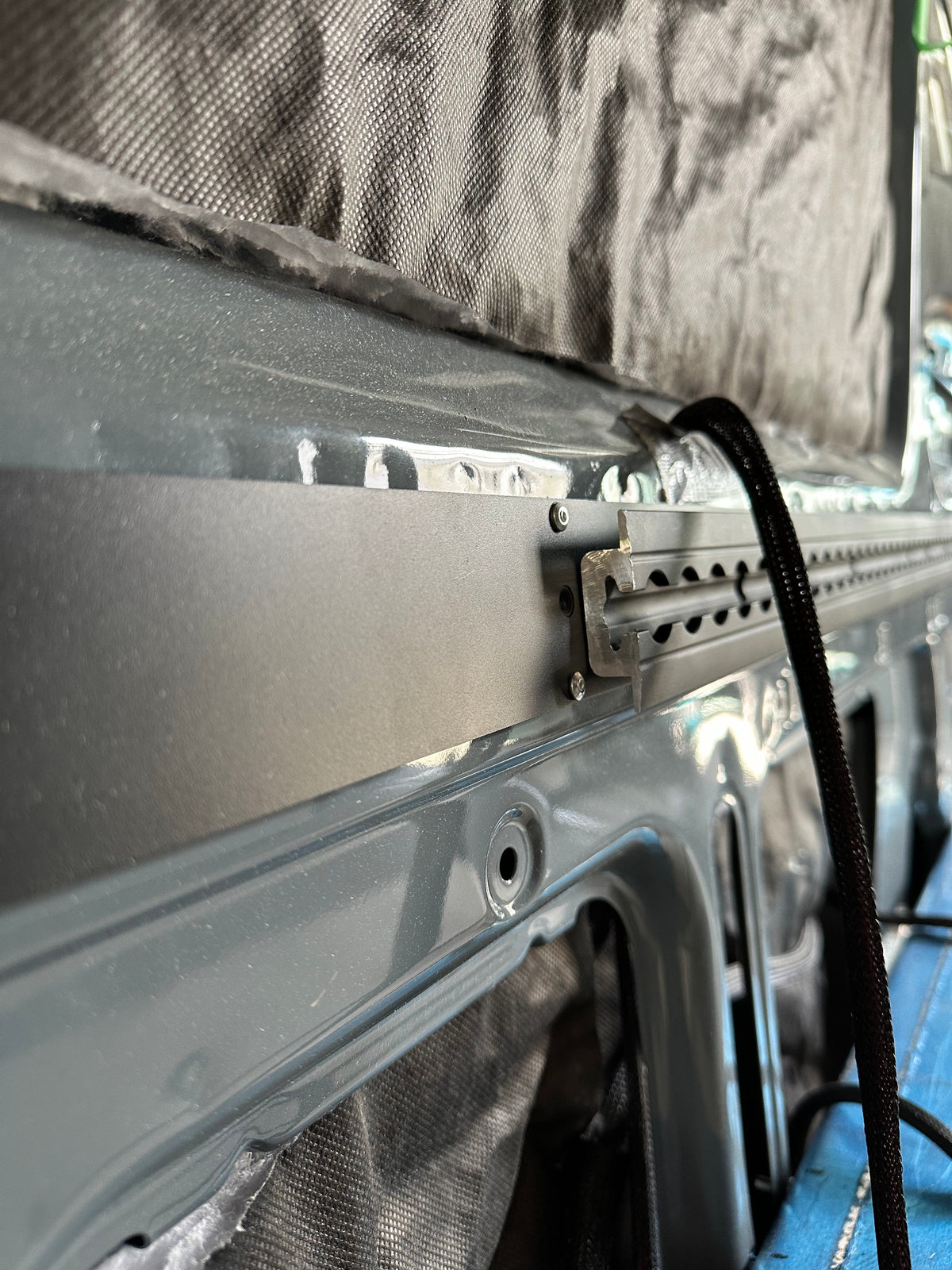

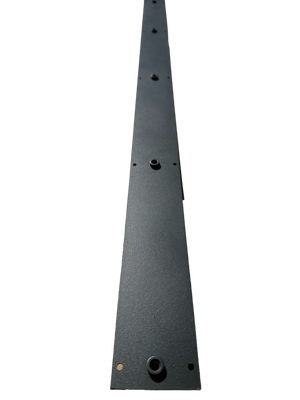

RoamLabX L-Track Back Framing is a powder-coated steel backing plate that reinforces mounting points for 84 in. L-track sections in a van conversion.

Pre-drilled mounting holes line up with 84 in. L-track sections, and high-strength welded nuts on the back give a secure anchor point in place of separate rivet nuts. Mounting screws and rivets are not included.

Key Features: RoamLabX L-Track Back Framing

A backing plate built to make an L-track run more secure and easier to install.

  • Powder-coated steel alloy construction balances strength with the flexibility needed for van conversion builds.
  • Pre-drilled holes simplify DIY installation.
  • High-strength welded nuts on the back stand in for separate rivet nuts.
  • Sized to match 84 in. L-track sections for a direct, integrated fit.

What's Included?

  • L-track back framing plates, 84 in. (quantity per pack selected)

Note: Mounting screws and rivets are not included; M6 stainless steel flat-head screws and 1/8 in. rivets are recommended.

Specifications: RoamLabX L-Track Back Framing

Length 84 in.
Width 2 1/8 in.
Number of Mounting Holes 12
Mounting Hole Spacing (outer six) 8 in. center to center
Mounting Hole Spacing (center two) 3 1/2 in. center to center
Recommended Mounting Hardware M6 stainless steel flat-head screws, 1/8 in. rivets (not included)
Material Powder-coated steel alloy
