Nova Kool RFS7501 AC/DC RV Refrigerator

  • $ 2,020.85

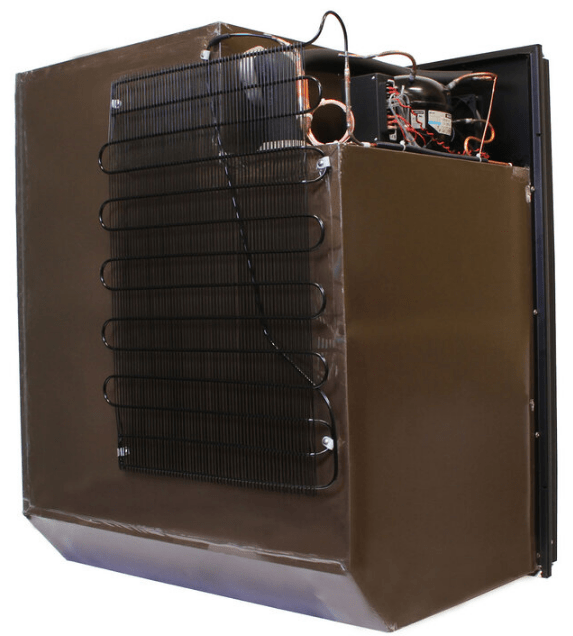

The Nova Kool RFS7501 AC/DC RV Refrigerator is a quiet, highly-efficient AC/DC refrigerator/freezer using the sealed Danfoss compressor. Sealed compressors are ideal for use in refrigerators, since there is no way for lubricant or refrigerant to leak out of the compressor - the motor is designed to run in (and be cooled by) the refrigerant being compressed. Danfoss (Secop) BD-series sealed compressors use a brushless, variable-speed electric motor mounted on springs to prevent any vibrations being transmitted, and with a muffler to minimize suction noise. The compressor pumps the CFC-free R134A refrigerant through the refrigerant circuit at 2000-3500 rpm, depending on cooling load. It’s a compact, rugged and maintenance-free design that uses very little power and is almost silent, which is why 12-volt refrigerators using this compressor are so quiet and efficient.

Nova Kool refrigerators are high-quality products made and supported in North America, by Nova Kool of Vancouver, BC, Canada. Nova Kool stands behind their products with a 2-year warranty.

Note: Non-returnable item due to large size and freight delivery. Shipping calculated at checkout. Please read important install information at bottom of page.

Key Features: Nova Kool RFS7501 AC/DC RV Refrigerator

  • AC/DC sealed-compressor RV refrigerator
  • 7.5 cubic foot capacity

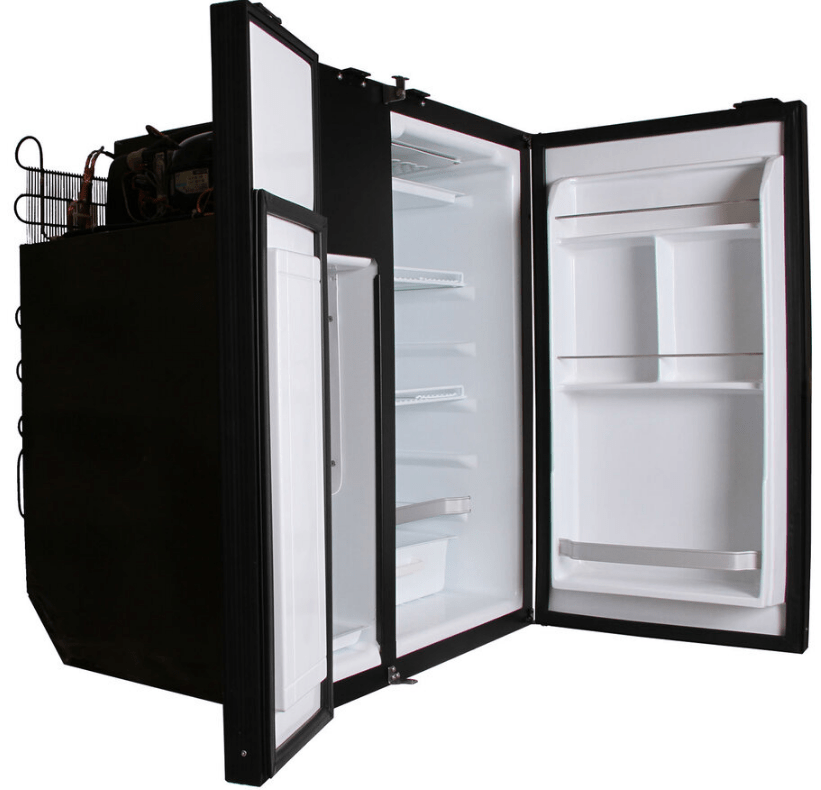

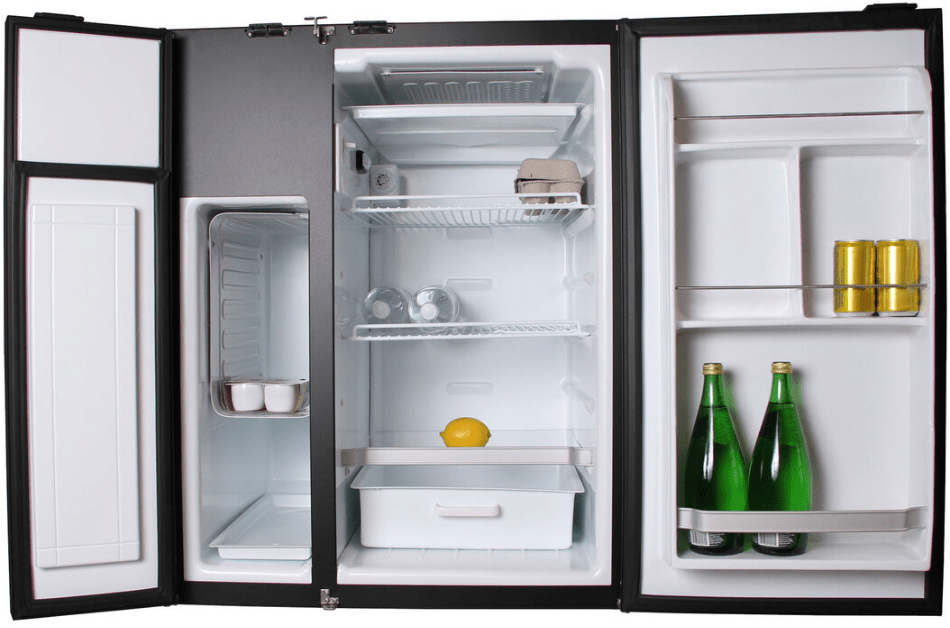

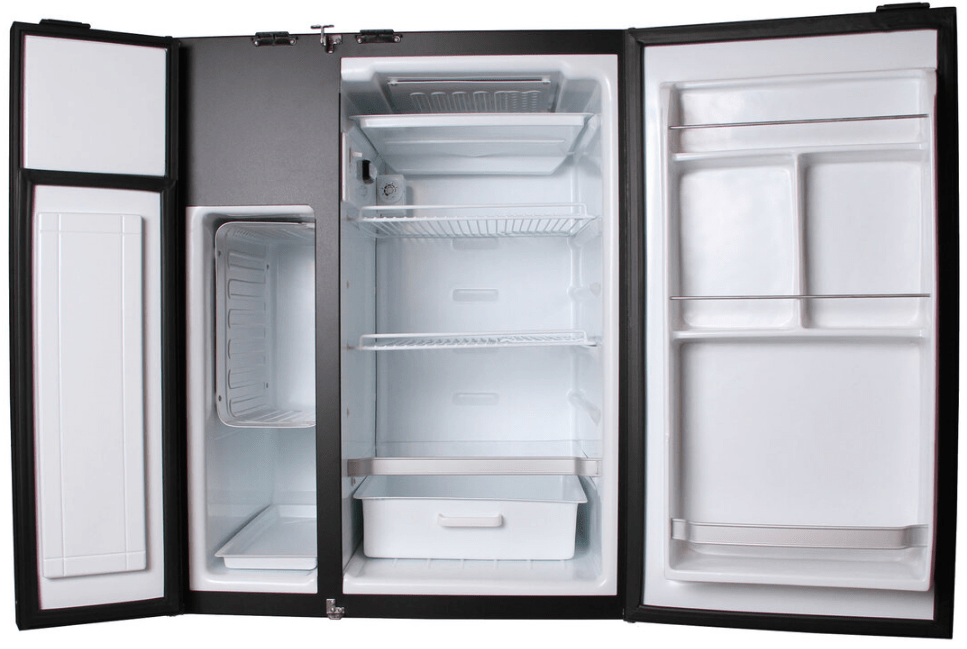

  • Large two-door side-by-side refrigerator with freezer on left
  • Positive latch system
  • Interior light
  • Storage for tall bottles on door
  • Durable powder-coated wire shelves
  • Separate doors for freezer and refrigerator sections

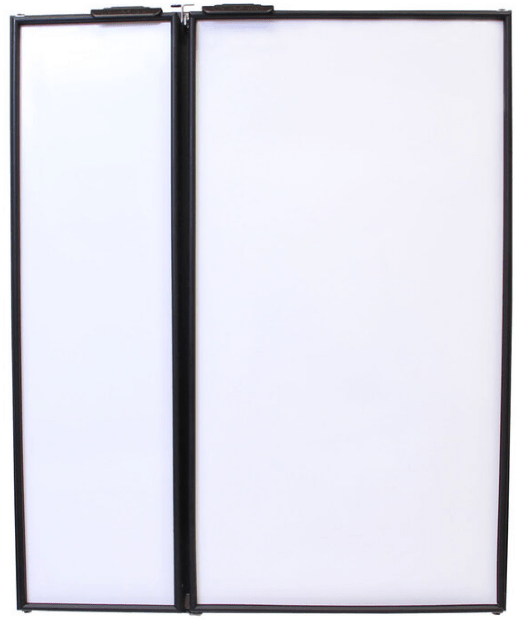

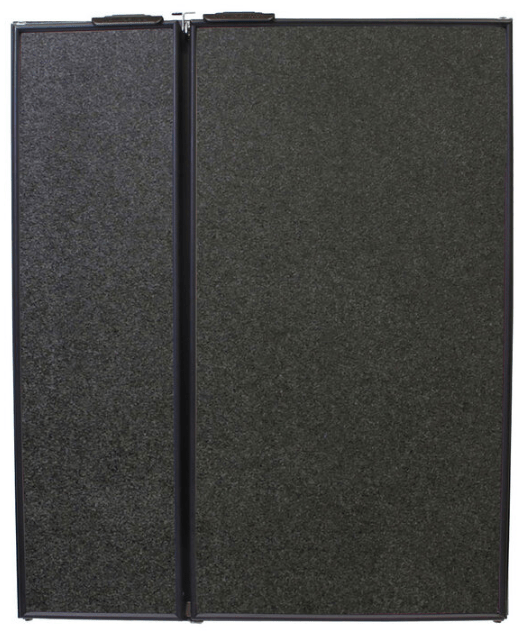

  • Black door panel standard
  • Environmentally-sound R134A refrigerant
  • CFC-free urethane foam in cabinet and doors
  • Magnetic door gaskets for positive seal
  • Stainless steel fasteners & hinges used throughout

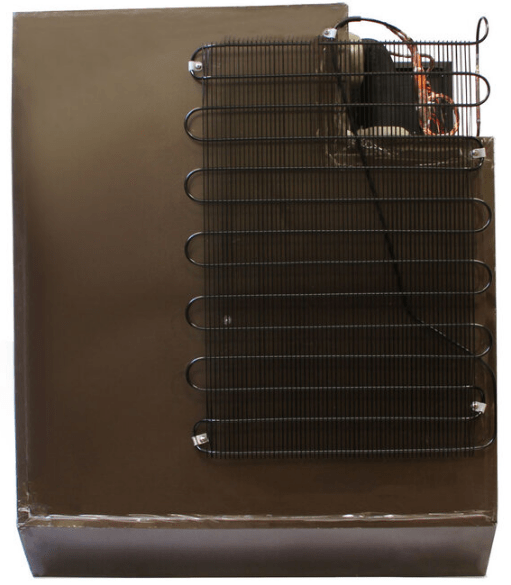

  • Maintenance-friendly & efficient static condenser
  • Low-battery protection to help prevent full discharge of batteries

Specifications: Nova Kool RFS7501 AC/DC RV Refrigerator

Overall interior volume 7.5 cu. ft. (212 liters)
Freezer section volume 2 cu. ft. (57 liters)
Weight (lbs.) 86
Voltage 12/24VDC, 100-240VAC 50/60Hz
Amperage running 4.4A (12VDC), 2.2A (24VDC)



Documents: Nova Kool RFS7501 AC/DC RV Refrigerator

 From the manual:

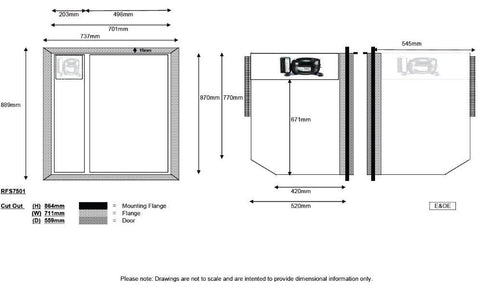

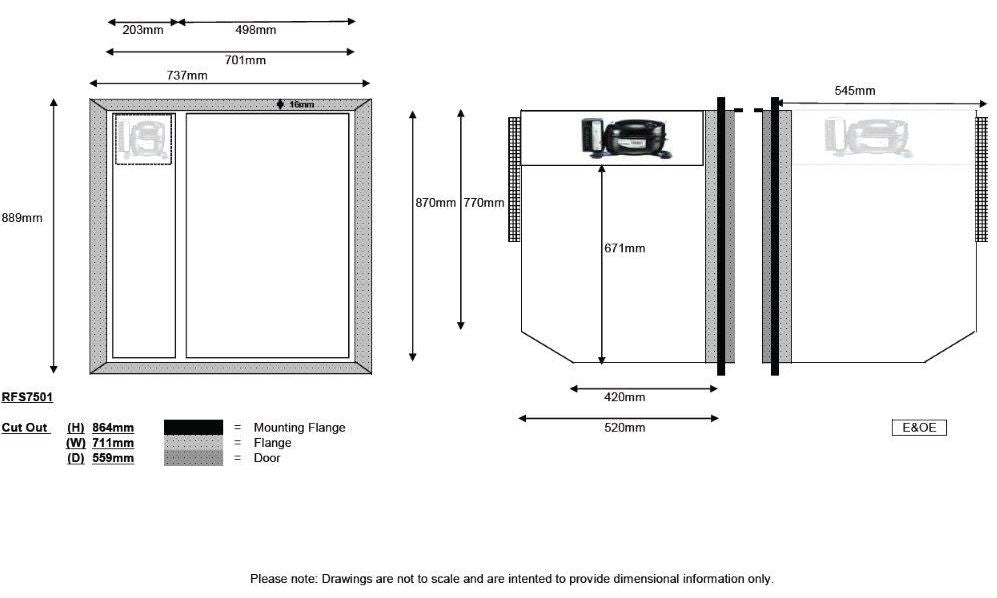

"Installation into the cabinet: Nova Kool publishes its cutout dimensions so that the unit will slide easily into the hole. The dimensions allow a little extra space so that the unit can be shimmied into place as well as providing extra air space behind where required. On most models, the mounting screws are installed and covered by supplied frame plugs (see bag with owners manual, ice cube tray & frame plugs). Flush mount frames and frame kits do not use screw covers. Please ensure that you are using the correct cut out dimensions that relate to the type of mounting flange you have ordered (flush mounting flanges require an additional 2.25” for the depth and 1”for both the height and the width than the standard units)."
