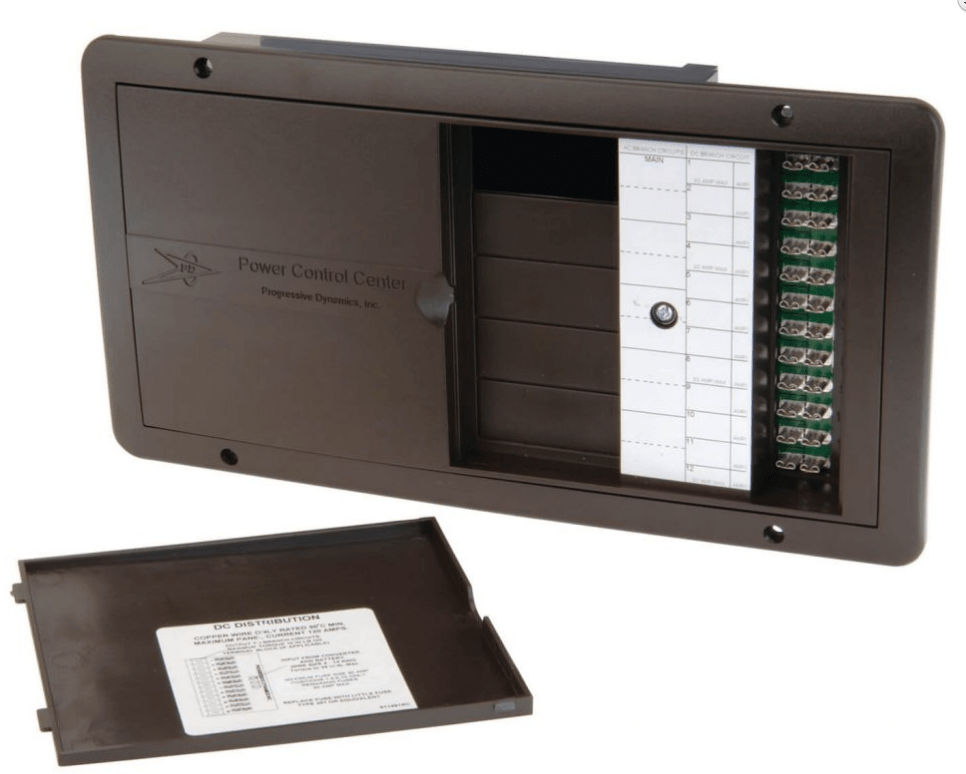

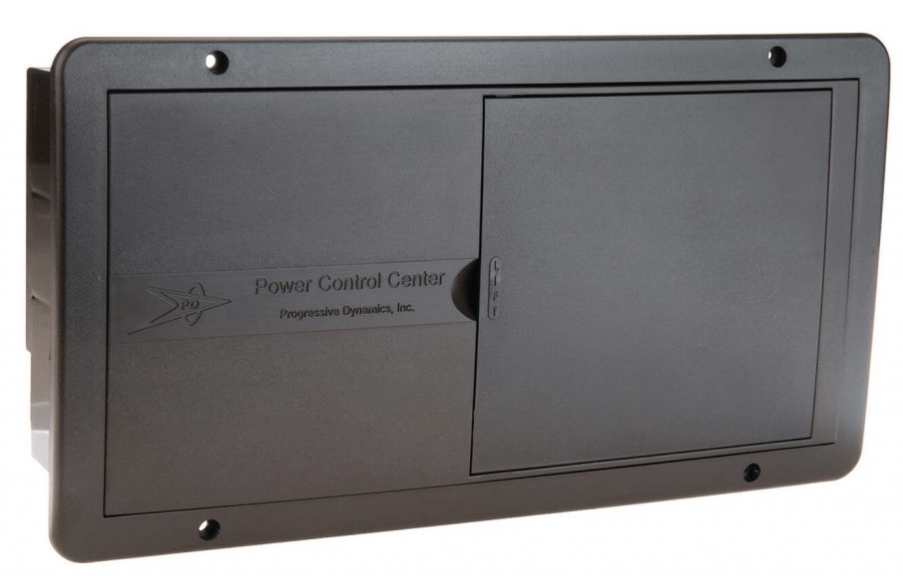

Progressive Dynamics PD5000 AC/DC RV Distribution Panel

  • $ 103.74


If you are building or retrofitting an RV with many AC circuits and need an AC/DC distribution panel that can handle 30A shore power, consider the Progressive Dynamics PD5000 AC/DC RV Distribution Panel. This panel can provide for both your AC and DC distribution needs:

  • Provisions for 30 ampere AC main and up to 9 AC branch circuits
  • Space for up to 12 fused DC branch circuits for 12-volt lighting and DC appliances

Want to save shipping costs? Use the discount code PDXPICKUP when you order and pick up from our Portland, Oregon warehouse and you won't pay any shipping costs.

Key Features: Progressive Dynamics PD5000 AC/DC RV Distribution Panel

  • AC/DC distribution panel, 22 circuit capability

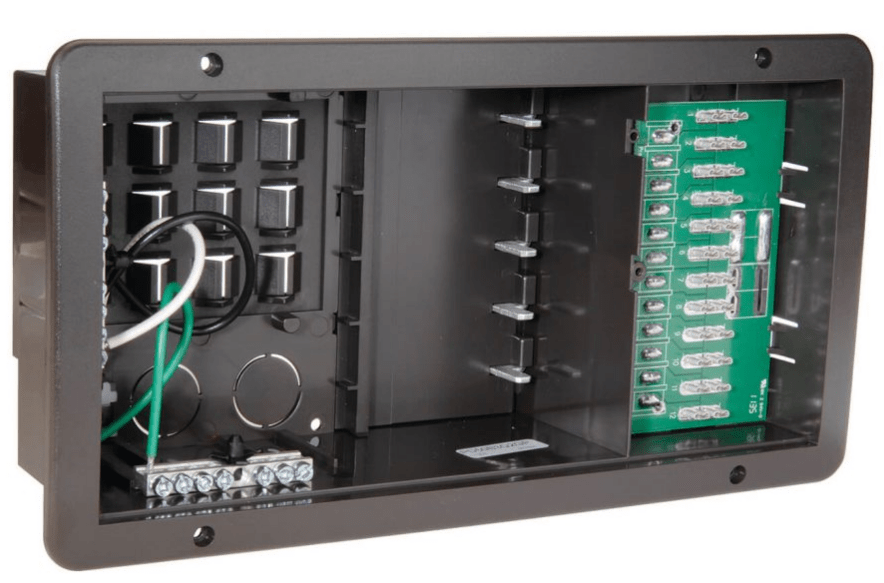

  • Generous wiring space for easy installation– also reduces costly wiring errors
  • Built-in wire strain relief for each branch circuit. Saves over 50% on installation costs
  • Accepts rated fuses up to 30 Amp – eliminates auxiliary fuse panels for slide-outs and leveling jacks saving you even more money
  • Attractive light weight panel design made from black or brown impact-resistant high temperature polymers

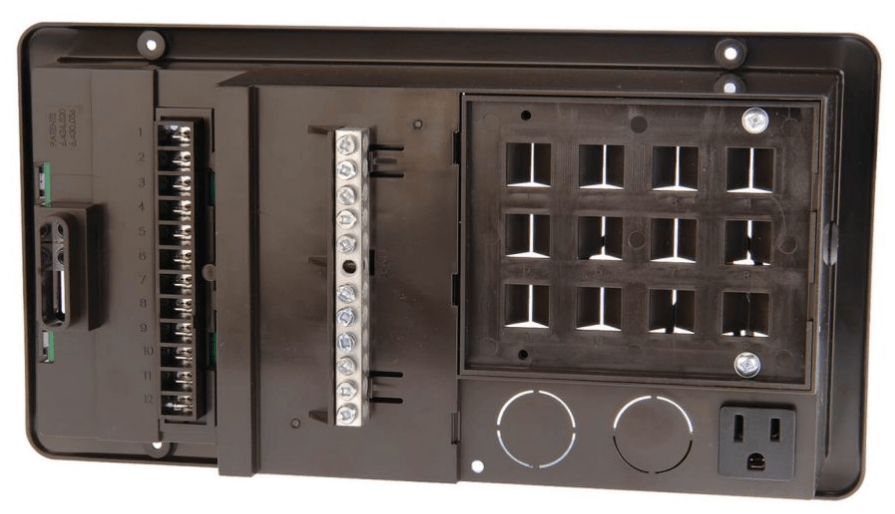

  • All 12 VDC branch circuit connections located on outside rear of panel – reducing installation time and costly errors
  • High current 12 VDC input power terminal strip provides easy connection point for battery and converter
  • Optional: 120 VAC, 15 Amp outlet available for power converters and other AC appliances
  • Optional: 11 terminal negative 12 VDC bus bar provides common connection point for all DC circuit negative wires

Specifications: Progressive Dynamics PD5000 AC/DC RV Distribution Panel

Dimensions 13.4″ W x 7.1″ H x 4.0″ D
Cut-out Size 12.25″ W x 5.875″ H
Weight 1.45 lbs



Documents: Progressive Dynamics PD5000 AC/DC RV Distribution Panel

Installation Guide PD 5000

Connections PD 5000

PD5000 Wiring with Converter
