S&B Filters 45 Gallon Replacement Fuel Tank for 2023-2025 Mercedes Sprinter 144 and 170 (10-1031)

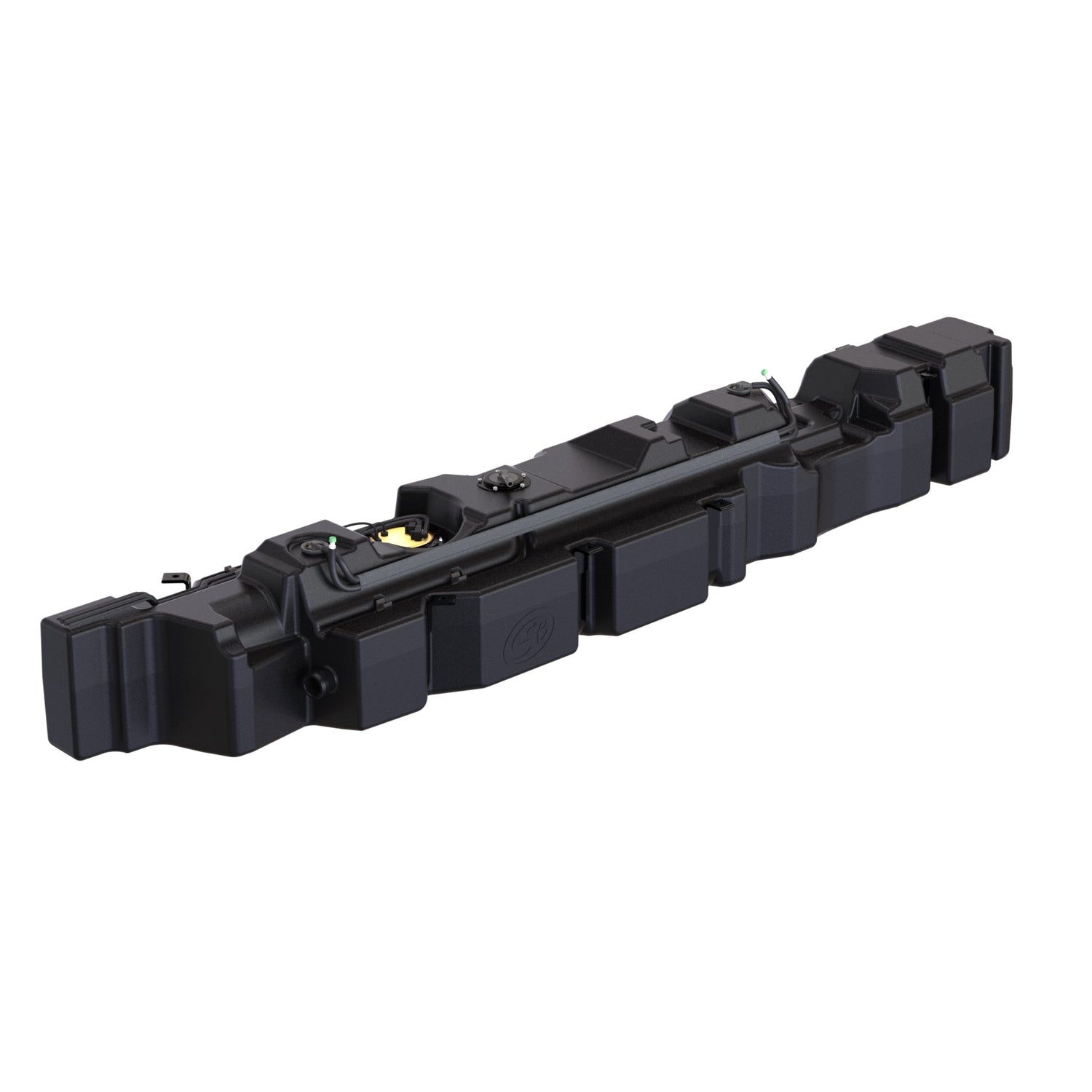

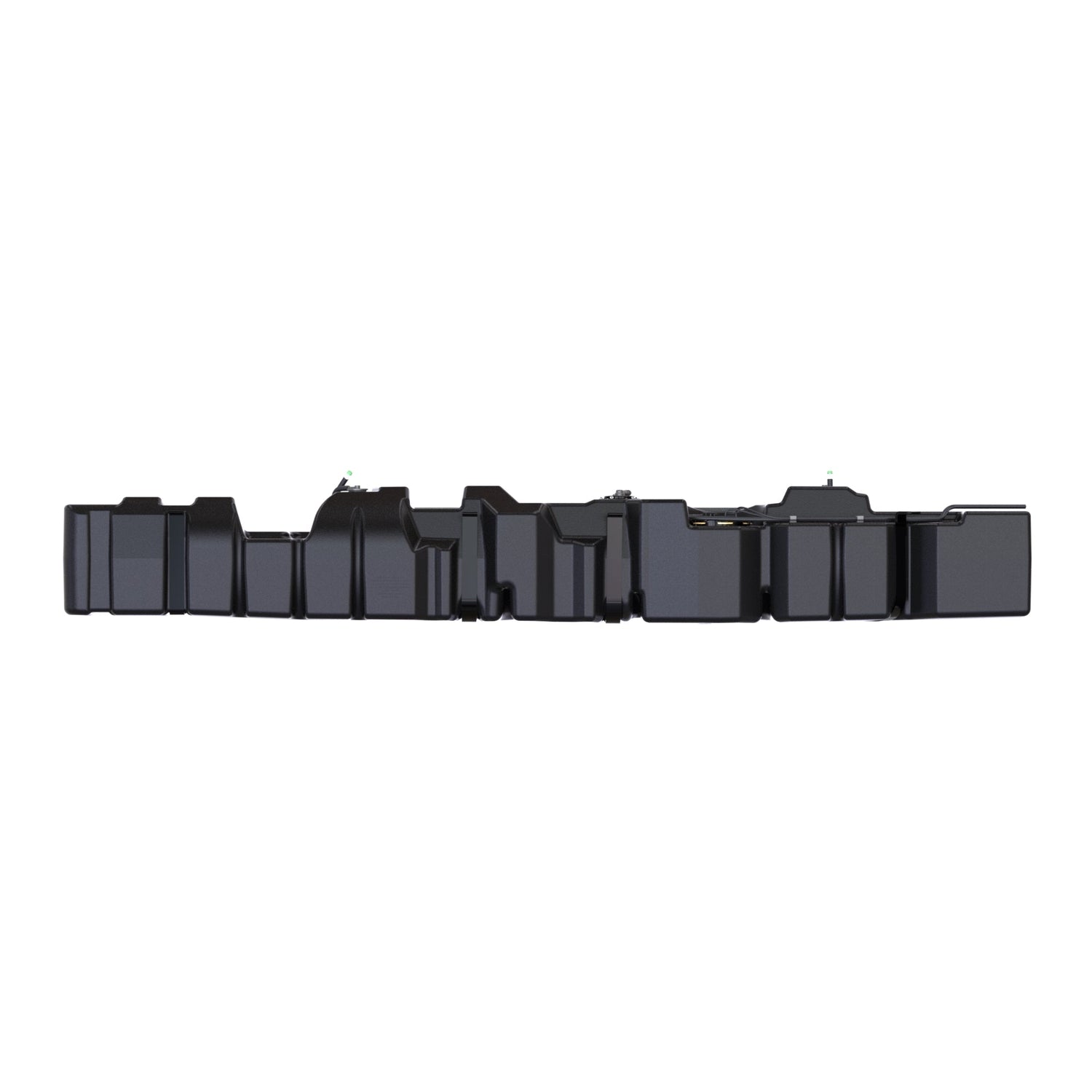

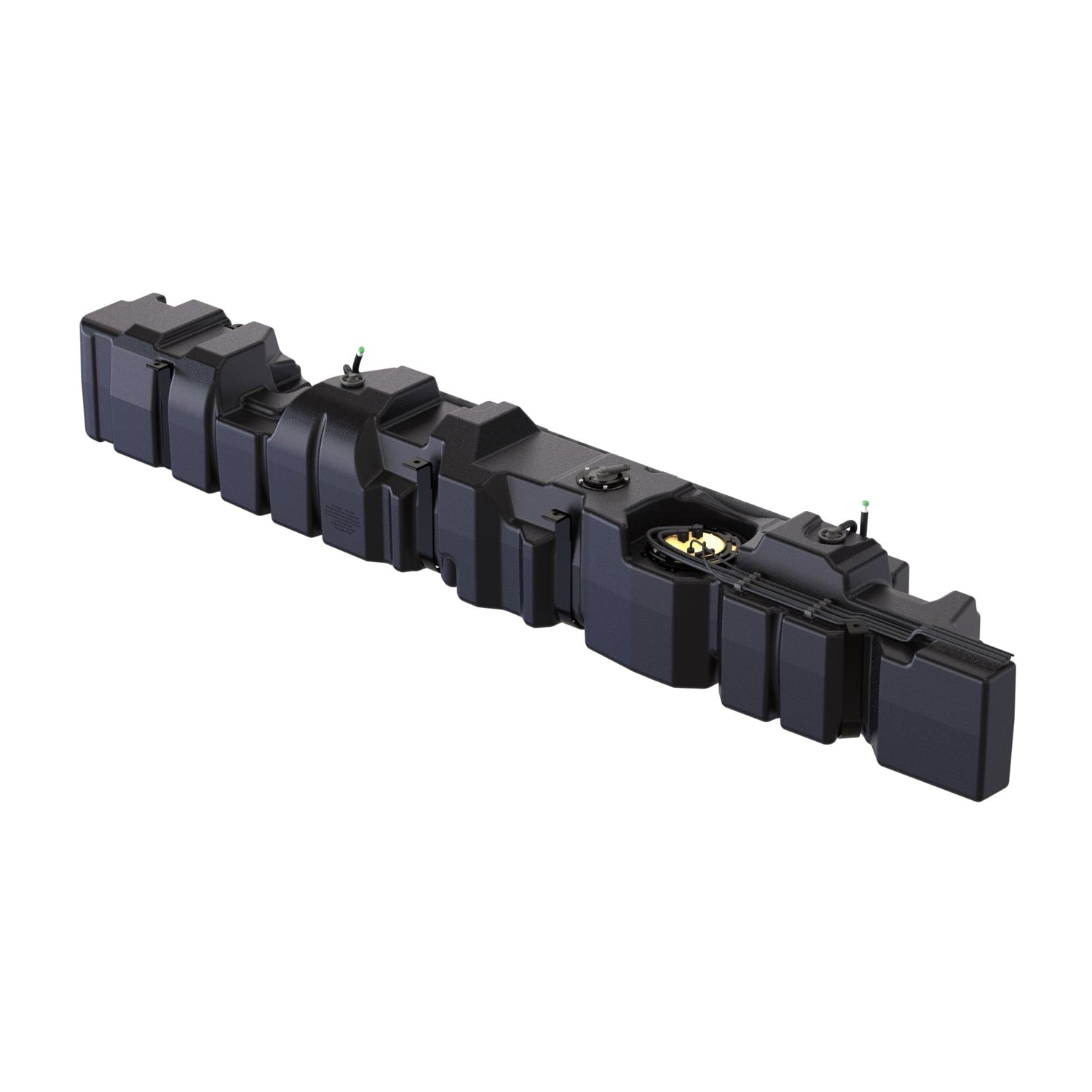

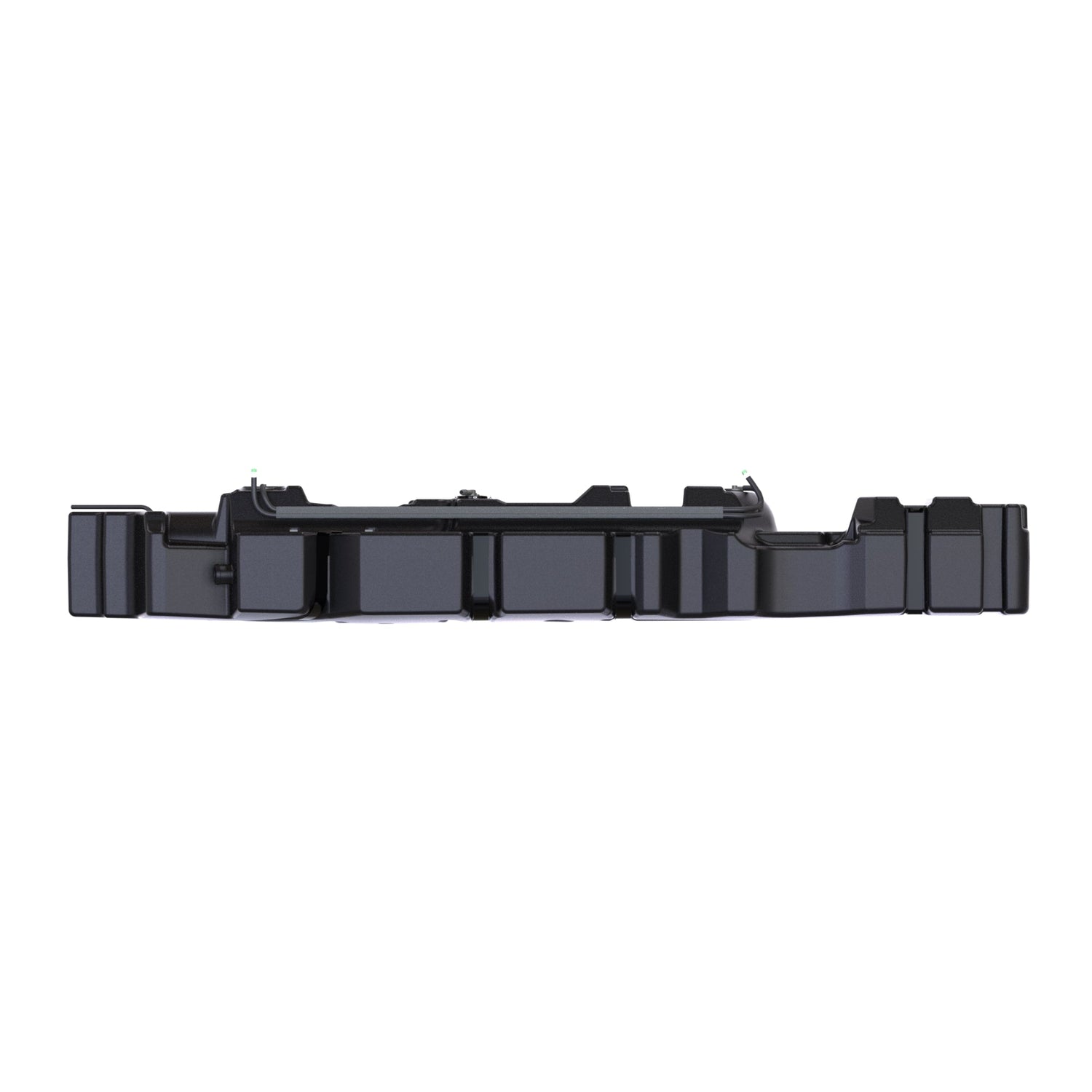

The S&B 45 Gallon Replacement Fuel Tank for 2023-2025 Mercedes Sprinter 144 and 170 comes with all the components to remove your 24 gallon tank and replace it with this 45 gallon tank. The tank mounts in the stock location with an additional rear strap. The tank occupies the space forward and rearward of the original tank and does not stick out anymore toward the driver side than the original tank.
Fits all single-rear-wheel Mercedes Sprinter and Ford Transit vans.
- 144” Dually Vans
- 170” Crew Vans (1 row of seats)
- Vans with plumbing/items 24 inches from the rear end of the OEM tank or 19 inches from the rear end of the large rear cross-member.
- Storyteller XO (accommodation coming soon)
2023+ Vans: Part # 10-1032 is a shorter 40 gallon tank and will work for 170" Crew Vans and vans with plumbing 5"+ behind the OEM tank
2019-2022 Vans: Part # 10-1027 is a shorter 40 gallon tank and will work for 170" Crew Vans, 144” Dually Vans, and vans with plumbing 5"+ behind the OEM tank
Important: The fuel gauge will only work accurately on vans with the J51 fuel gauge (optimized for aux. fuel tap). Please call your Mercedes dealer to confirm if you have this option. If you don’t have it, you will need TI1349-00 or TI1527-00. We recommend TI1527-00 as it also reprograms your Miles to Empty reading.
When using the auxiliary fuel tap on stock tanks, tap stops pulling fuel around 1/4 tank. With the S&B Tank, it will stop pulling fuel around 1/3-1/2 tank.
Tank Dimensions:
46" Length x 13.5" Width x 20" Height
Tank dimensions are approximate. Dimensions can vary up to .5".
TEI Tested & Listed / RVIA Approved / BPA Free.
Vehicle Fitment
| Year | Make | Model | Engine |
|---|---|---|---|
| 2019-2022 | Mercedes | Sprinter | 2.0L, Diesel |
| 2019-2022 | Mercedes | Sprinter | 3.0L, Diesel |
| 2020-2023 | Storyteller | Classic Mode 4x4 | 3.0L, Diesel |
| 2020-2023 | Storyteller | Beast Mode 4x4 | 3.0L, Diesel |
| 2020-2024 | Winnebago | Navion | 3.0L, Diesel |
| 2020-2024 | Winnebago | View | 3.0L, Diesel |
| 2021-2023 | Storyteller | Stealth Mode 4x4 | 3.0L, Diesel |
| 2022-2023 | Pleasure-Way | Rekon 4x4 | 3.0L, Diesel |
| 2022-2023 | Winnebago | Adventure Wagon 70 | 3.0L, Diesel |
| 2023-2025 | Mercedes | Sprinter | 2.0L, Diesel |
| 2023-2025 | Storyteller | Classic Mode 4x4 | 3.0L, Diesel |
| 2023-2025 | Storyteller | Stealth Mode 4x4 | 3.0L, Diesel |
| 2023-2025 | Storyteller | Beast Mode 4x4 | 3.0L, Diesel |
| 2025 | Winnebago | Ekko | 2.0L, Diesel |
| Dimensions | 98.28" X 15.41" X 14.17" |
| Drain | No |
| Ground clearance compare to oe tank | 1.5" |
| Oem capacity | 24 Gallons |
| Sending unit | OE |
| Straps included | Yes |
| Sump | No |
| S&B Capacity (Approximate) | 45 Gallons |
| Tank type | Midship |
| Weight dry | 45lbs |
