Van Compass 2018+ Ford Transit AWD - Stage 4 Topo 2.0 System (Single Rear Wheel)

Part#
Light/Mid Tune: VCMP-7214-LM
Mid/Heavy Tune: VCMP-7214-MH

Improve the ride quality and stance of your 2020-Present Ford Transit AWD with Van Compass 2018+ Ford Transit AWD - Stage 4 Topo 2.0 System (Single Rear Wheel). It is the ultimate solution for heavier vans and passenger vans seeking a more aggressive stance, greater ride control, and maximum adjustability. Specifically designed around the packaging and front CV shaft constraints of the 2020+ AWD Transit platform, this system delivers a true 2-inch lift while preserving reliable drivability and ride quality.

The Stage 4 Topo 2.0 kit features a precision-engineered 0.75" lift camber correction plate paired with tuned coil springs, providing 1.25" of front lift and increased compression travel for superior handling on rough and uneven terrain. In the rear, a 5-leaf mini pack works alongside the factory leaf springs to increase the spring rate by 10–15%, lifting the van by 2.0" to 2.5" depending on load. Friction-reducing tips on the leaves ensure quiet, smooth operation under heavy loads. Rear shock relocation brackets are included to allow the trimming of the low-hanging factory mounts for improved axle tube clearance and better overall ground clearance.

At the heart of this system are VC-tuned Falcon 3.3 Adjustable Rear Shocks, offering 10 intuitive firmness settings controlled by a large, easily accessible Fast Adjust knob. This wide adjustment range allows you to quickly switch between soft, compliant settings for rough trails and firm, stable settings for highway cruising, giving you maximum adaptability for changing driving conditions.

Key Features: Van Compass 2018+ Ford Transit AWD - Stage 4 Topo 2.0 System (Single Rear Wheel)

• Fits 2018+ Ford Transit AWD Single Rear Wheel vans only
• Aggressive, 2" taller stance allows larger tires to smooth out terrain
• Increased approach, break over and departure angles
• VC tuned Falcon 3.3 Adjustable rear shocks with 10 intuitive firmness settings
• Increased rear spring rate fights sag
• Enhanced cornering stability and reduced wind sway
• More effective control over large and small bumps

• Improved handling feel on rough roads and broken pavement
• Increased bottom out resistance

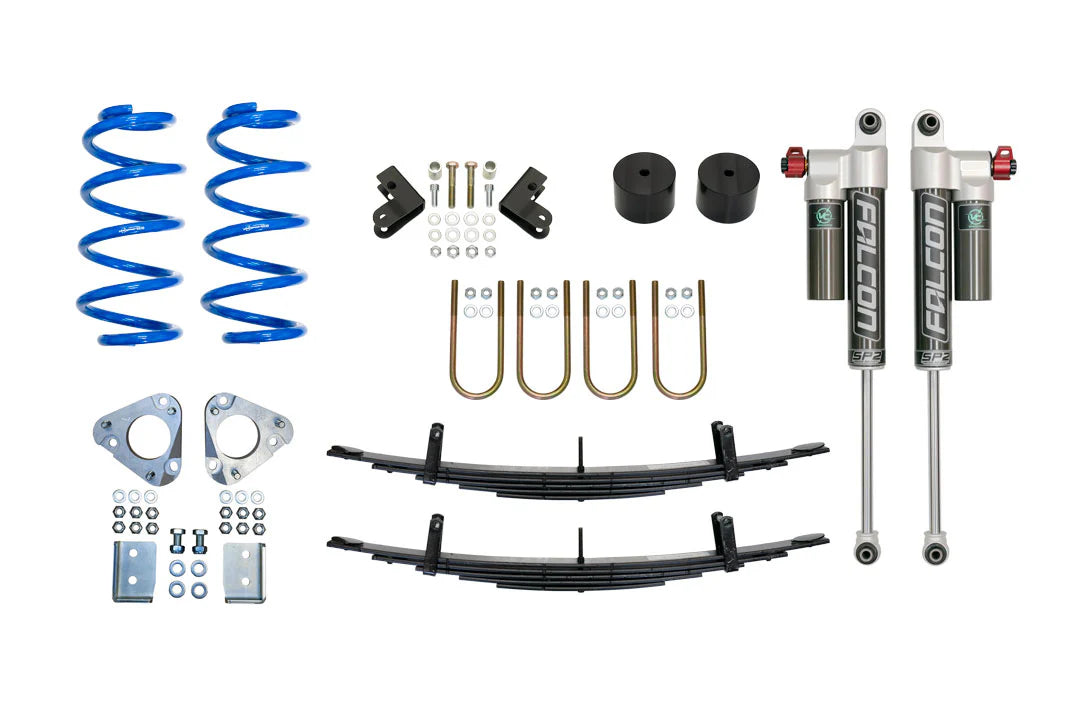

What's Included?

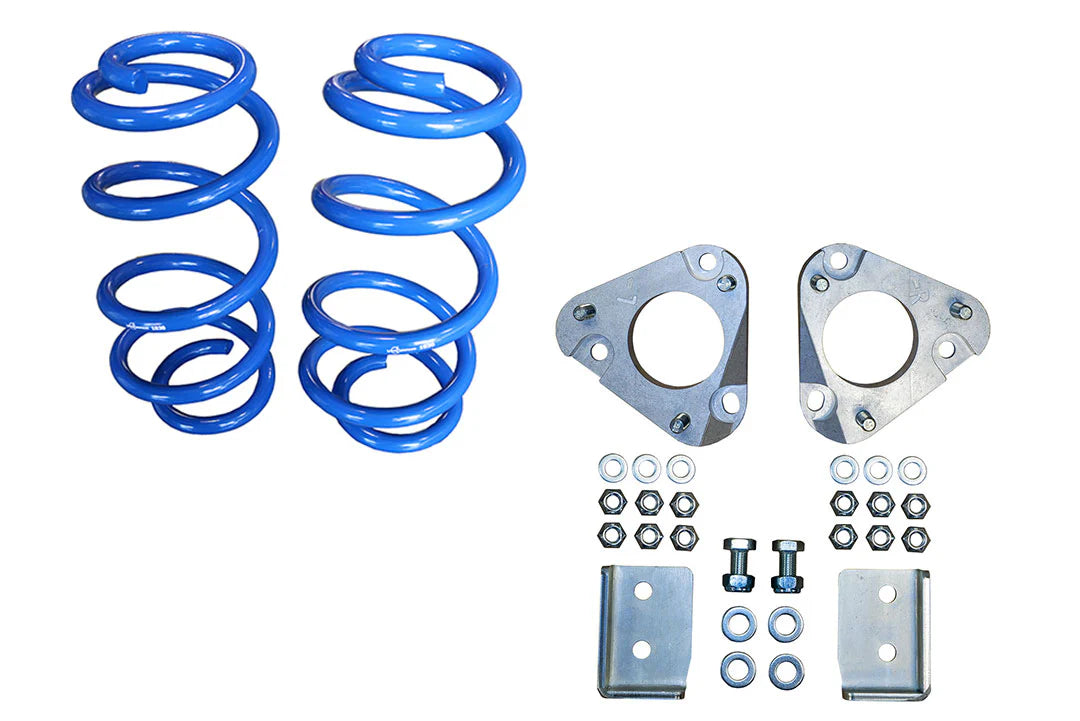

• Topo 2.0 Front Lift Kit

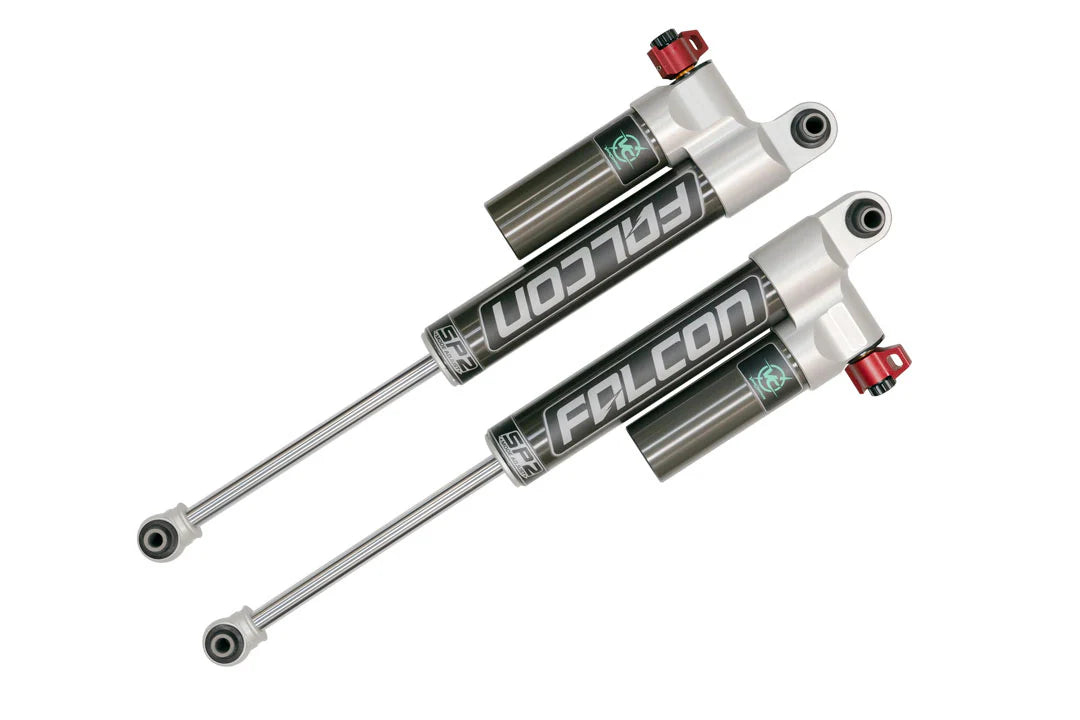

• Tuned Falcon 3.3 SP2 Adjustable Rear Reservoir Shocks (1 pair)

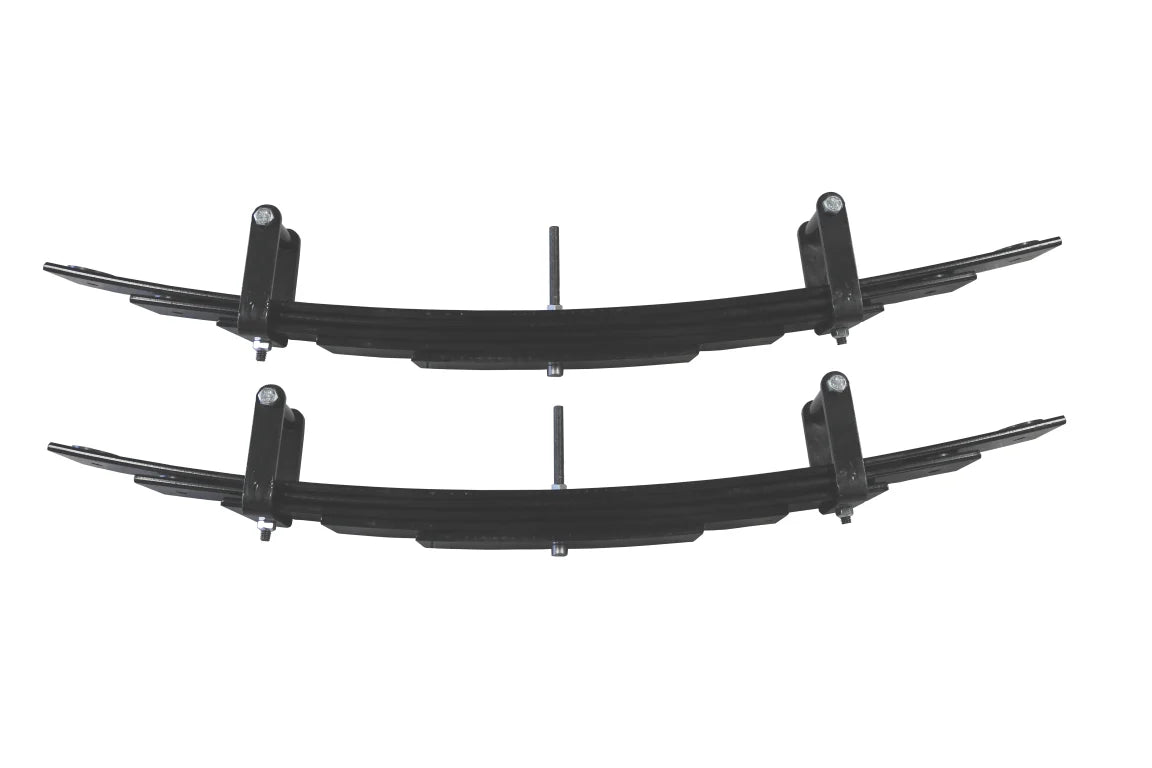

• Rear 5-Leaf Mini-Spring Pack and Bump Stop Spacers
• High Clearance Rear Shock Brackets


Fitment Guide

MODEL: TRANSIT SINGLE REAR WHEEL ONLY

YEAR: 2018-PRESENT

DRIVE TYPE: AWD & RWD

>>COMPLETE WHEEL AND TIRE FITMENT GUIDE<<

>>DON'T KNOW YOUR VANS WEIGHT? USE THE CAT SCALE LOCATOR<<

NOTE: Van must be professionally aligned after lift kit installation! Adverse tire wear and driving characteristics will result if van is not properly aligned.

NOTE: Bilstein B6 strut not recommended for AWD models.

Documents: Van Compass 2018+ Ford Transit AWD - Stage 4 Topo 2.0 System (Single Rear Wheel)

2013+ Transit Topo Front Kit Installation Instructions

2013+ Transit Rear Falcon 3.3 Installation Instructions

2013+ Transit High Clearance Shock Brackets Installation Instructions

2013+ Transit Rear Leaf Pack Installation Instructions

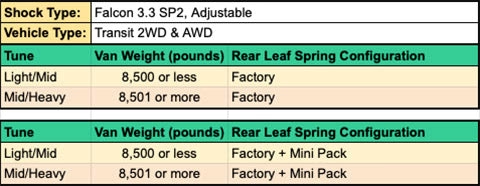

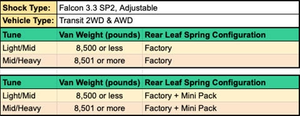

Falcon 3.3 Shock Settings Guide

Video: Van Compass 2018+ Ford Transit AWD - Stage 4 Topo 2.0 System (Single Rear Wheel)
