Van Compass 2015-2017 Ford Transit RWD - Stage 1 Topo 2.0 System (Single or Dual Rear Wheel)

PART#
MID TUNE: VCMP-7112-M
HEAVY TUNE: VCMP-7112-H

Van Compass 2015-2017 Ford Transit RWD - Stage 1 Topo 2.0 System (Single or Dual Rear Wheel) improves the ride quality and stance of your 2013-Present Ford Transit with the Stage 1 Topo 2.0 package. Our system achieves a true 2.0” of lift for improved ground clearance while maintaining factory alignment specifications. This tuned suspension system will dramatically improve your ride quality and our Topo kit was developed specifically to work around the packaging and front CV shaft constraints presented by the 2020 AWD Transit platform. This kit is compatible with RWD Transit models from 2013-present, and fits all single and dual rear wheel vans. The Stage 1 kit is designed specifically for stock passenger vans, lighter camper builds, and dual rear wheel work vans that need additional clearance.

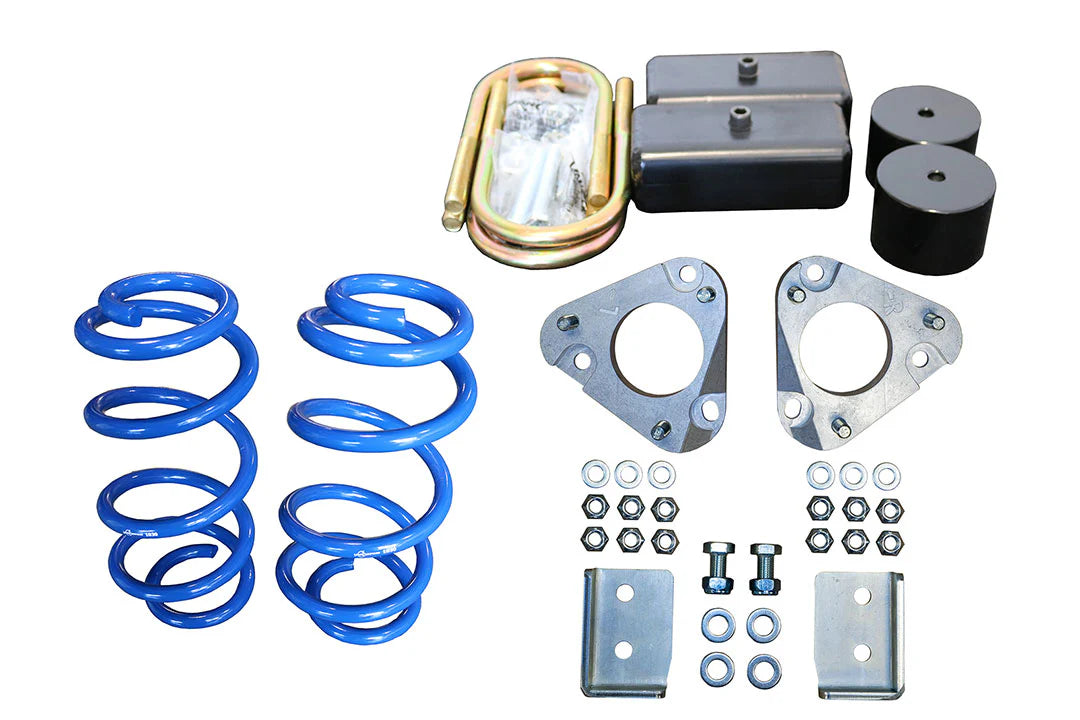

Our Topo Front Lift kit combines a precision engineered 0.75" lift camber correction plate, with a tuned coil spring. By engineering the spring length and rate to our specifications, our tuned spring nets approximately 1.25" of lift with a corresponding increase in compression travel. Rear lift at Stage 1 is accomplished by a 2" billet aluminum block.

For optimum ride quality improvement, the Stage 1 Topo 2.0 package includes a Bilstein B6 strut for an additional ½” of front lift and a great improvement in front end damping control. The Bilstein B6 strut has the coil spring perch welded onto the strut body at a 0.5” higher height than the factory strut which preloads the coil spring an additional 0.5” for slightly more lift.

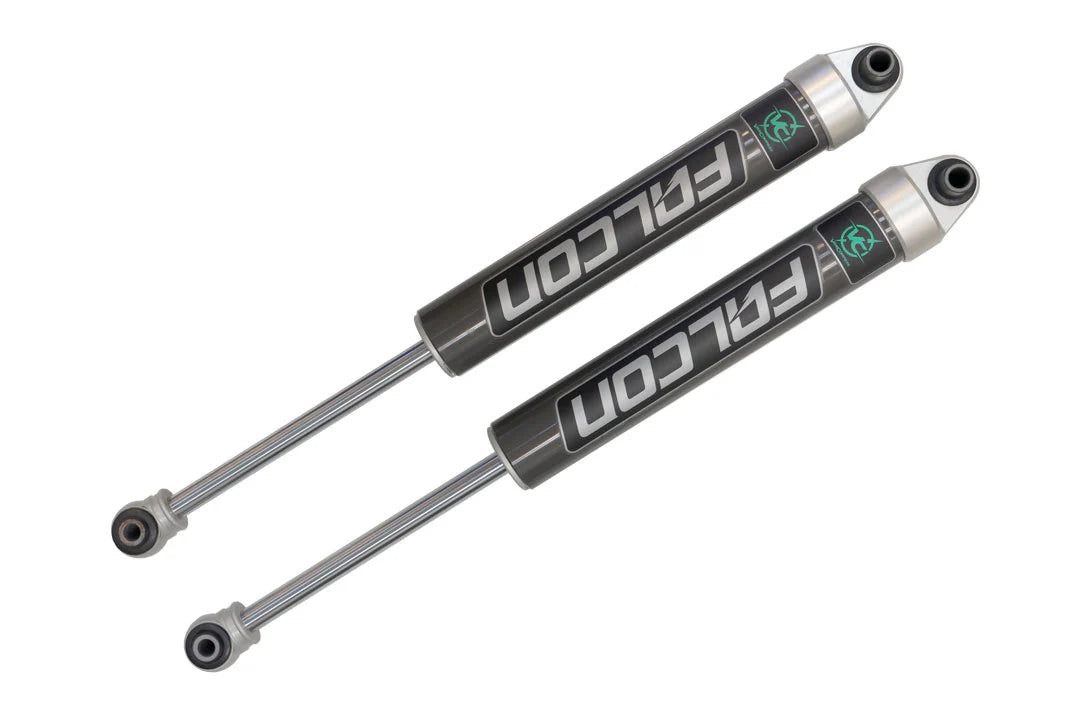

Rear Falcon 2.1 Monotube shocks are tuned to our specifications. These upgraded dampers feature a 2.35" piston that will smooth out the harshness experienced on washboard roads and sharp, abrupt impacts. The bounce experienced over large bumps is reduced as well as the side to side sway or “jostling” over uneven surfaces. Our Rear Shock Relocation Brackets allow for increased ground clearance and move the vulnerable shaft of your shock out of harm's way.

We recommend running a maximum tire size of 265/75/16 with this suspension package. This tire size will require some slight trimming of the inner pinch seam, details of which are covered in the instructions for this kit. With a Bilstein B6 strut, an astounding 12-3/4” of ground clearance is achieved under the center of the front suspension cross member with this tire size.

For more detailed information on this suspension package, read through the detailed instructions below as well as our AWD development videos regarding the R&D process of developing the Topo 2.0 lift kit. With this suspension package installed, the Ford Transit is an absolute joy to drive on all road conditions.

Key Features: Van Compass 2015-2017 Ford Transit RWD - Stage 1 Topo 2.0 System (Single or Dual Rear Wheel)

• Fits 2015-2017 Ford Transit RWD vans only
• Aggressive, 2" taller stance allows larger tires to smooth out terrain
• Increased approach, break over and departure angles
• VC tuned Falcon 2.1 Monotube Shocks

• Enhanced cornering stability and reduced wind sway
• More effective control over large and small bumps

• Improved handling feel on rough roads and broken pavement
• Increased bottom out resistance

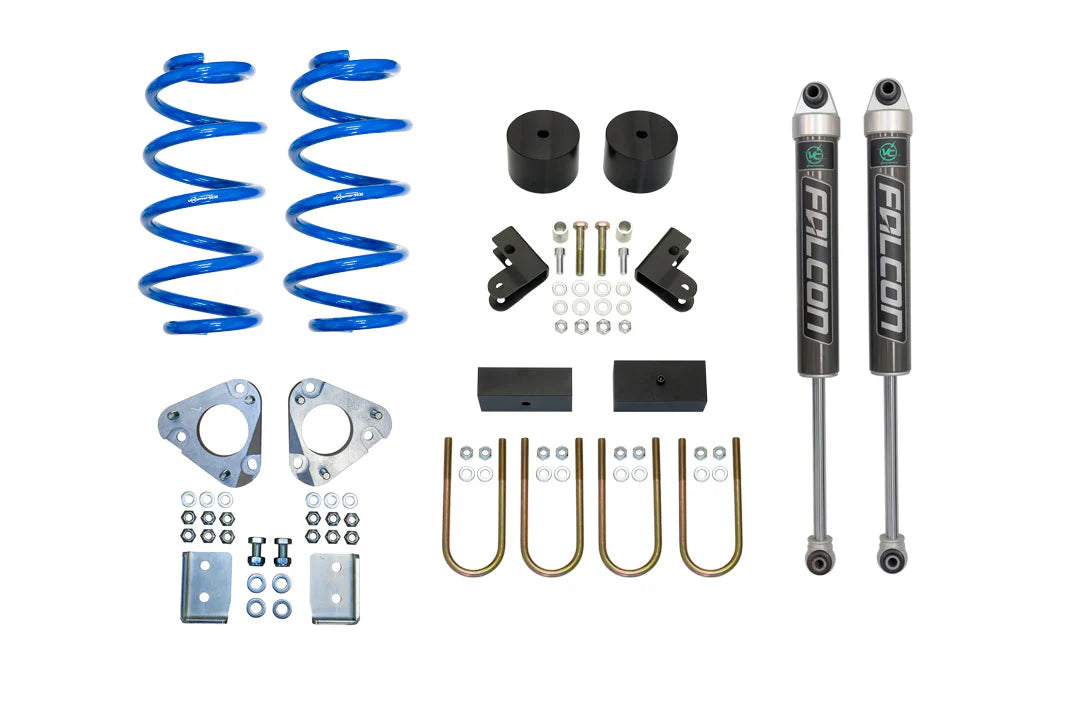

What's Included?

• Topo 2.0 Front and Rear Lift Kit
• Tuned Falcon 2.1 Monotube Rear Shocks (1 pair)
• High Clearance Rear Shock Brackets

Fitment Guide

MODEL: TRANSIT

YEAR: 2015-PRESENT

DRIVE TYPE: RWD

>>COMPLETE WHEEL AND TIRE FITMENT GUIDE<<

>>DON'T KNOW YOUR VANS WEIGHT? USE THE CAT SCALE LOCATOR<<

NOTES: Van must be professionally aligned after lift kit installation! Adverse tire wear and driving characteristics will result if van is not properly aligned.

Documents: Van Compass 2015-2017 Ford Transit RWD - Stage 1 Topo 2.0 System (Single or Dual Rear Wheel)

2013+ Transit Topo Front Kit Installation Instructions

2013+ Transit Topo Rear Kit Installation Instructions

2013+ Transit Rear Falcon 2.1 Installation Instructions

2013+ Transit High Clearance Shock Brackets Installation Instructions

Video: Van Compass 2015-2017 Ford Transit RWD - Stage 1 Topo 2.0 System (Single or Dual Rear Wheel)
