Van Compass 2015-2017 Ford Transit RWD - Stage 4 Topo 2.0 System
Part#
LIGHT/MID TUNE: VCMP-7118-LM
MID/HEAVY TUNE: VCMP-7118-MH
Need a suspension upgrade for your Ford Transit RWD? The Van Compass 2015-2017 Ford Transit RWD - Stage 4 Topo 2.0 System delivers maximum versatility, improved ride quality, and an aggressive stance for heavier vans and passenger vans alike. Designed to provide a true 2-inch lift while giving you full control over your ride settings, this system is tuned to handle extra weight without sacrificing comfort or drivability.
The Stage 4 Topo 2.0 package includes a precision-engineered 0.75" lift camber correction plate paired with tuned coil springs, providing 1.25" of lift up front and increased compression travel for improved handling over rough roads. At the rear, a 5-leaf mini pack works with the factory leaf springs to increase spring rate by 10–15%, lifting the rear of the van between 2.0" and 2.5" depending on vehicle weight. Friction-reducing tips on the leaf springs ensure smooth, quiet operation. Rear shock relocation brackets are included to allow trimming of the factory mounts for better axle tube clearance and ground clearance.
The highlight of this system is the VC-tuned Falcon 3.3 Adjustable Rear Shocks, featuring 10 intuitive firmness settings controlled by a large, easily accessible Fast Adjust knob. This wide adjustment range gives you the ability to switch from a soft, compliant off-road setup to a firm, stable highway ride in seconds, offering unmatched flexibility for all driving conditions.
Key Features: Van Compass 2015-2017 Ford Transit RWD - Stage 4 Topo 2.0 System
- Aggressive, 2" taller stance allows larger tires to smooth out terrain
- Increased approach, break over and departure angles
- VC tuned Falcon 3.3 Adjustable rear shocks with 10 intuitive firmness settings
- Increased rear spring rate fights sag
- Enhanced cornering stability and reduced wind sway
- More effective control over large and small bumps
- Improved handling feel on rough roads and broken pavement
- Increased bottom out resistance

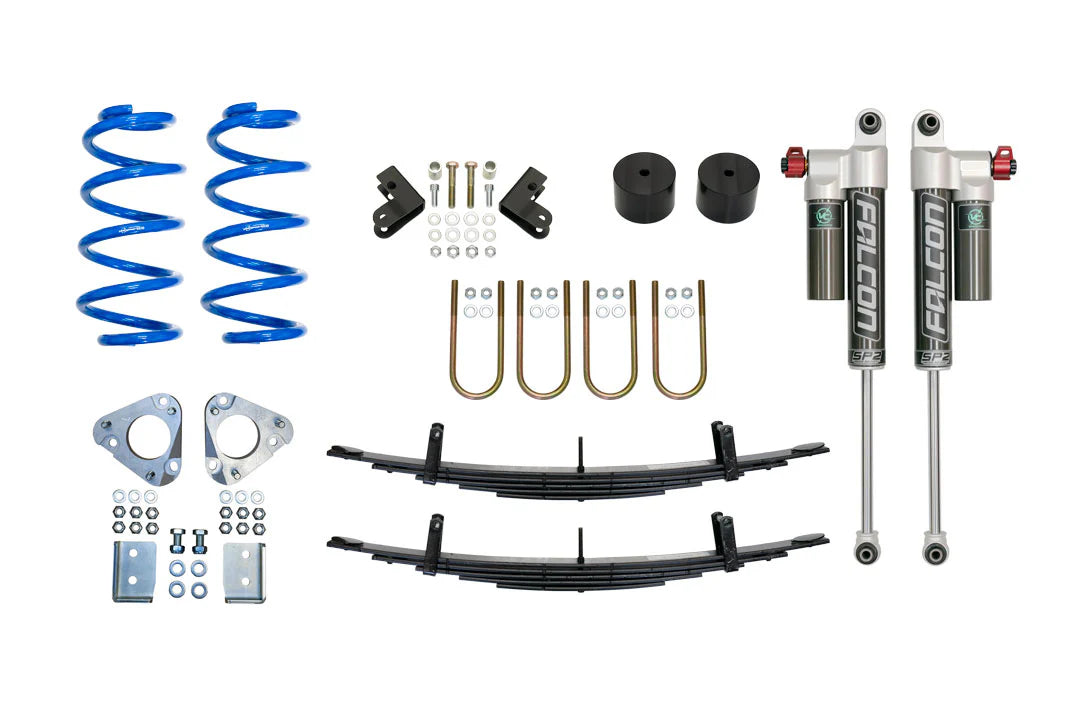

What's Included?

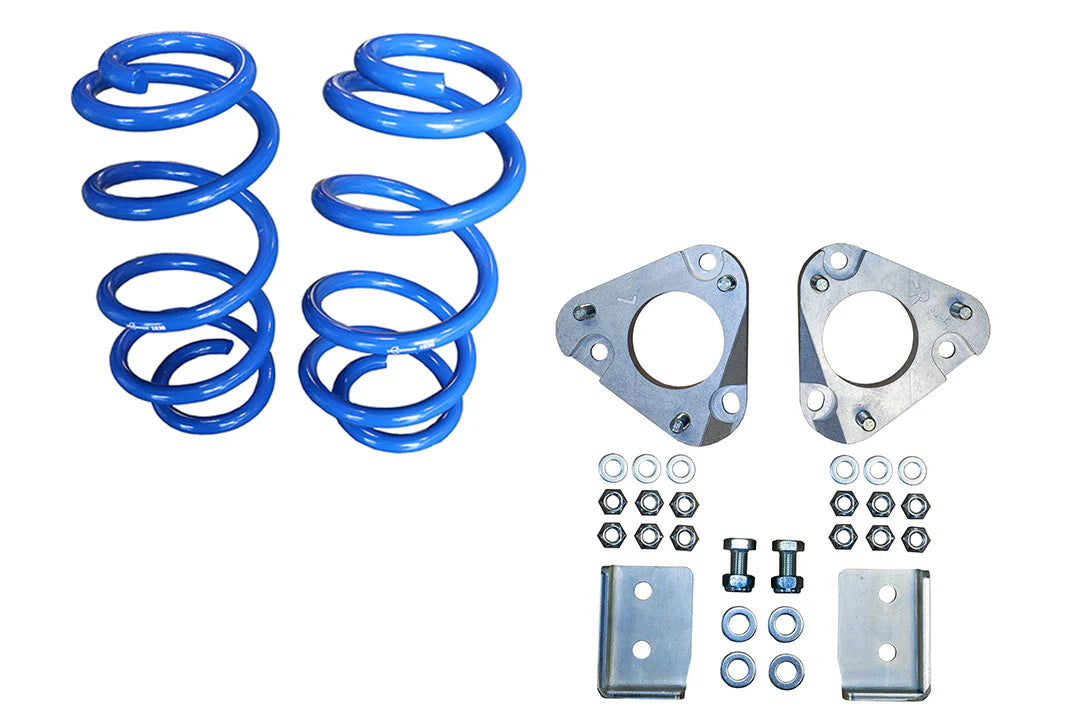

- Topo 2.0 Front Lift Kit

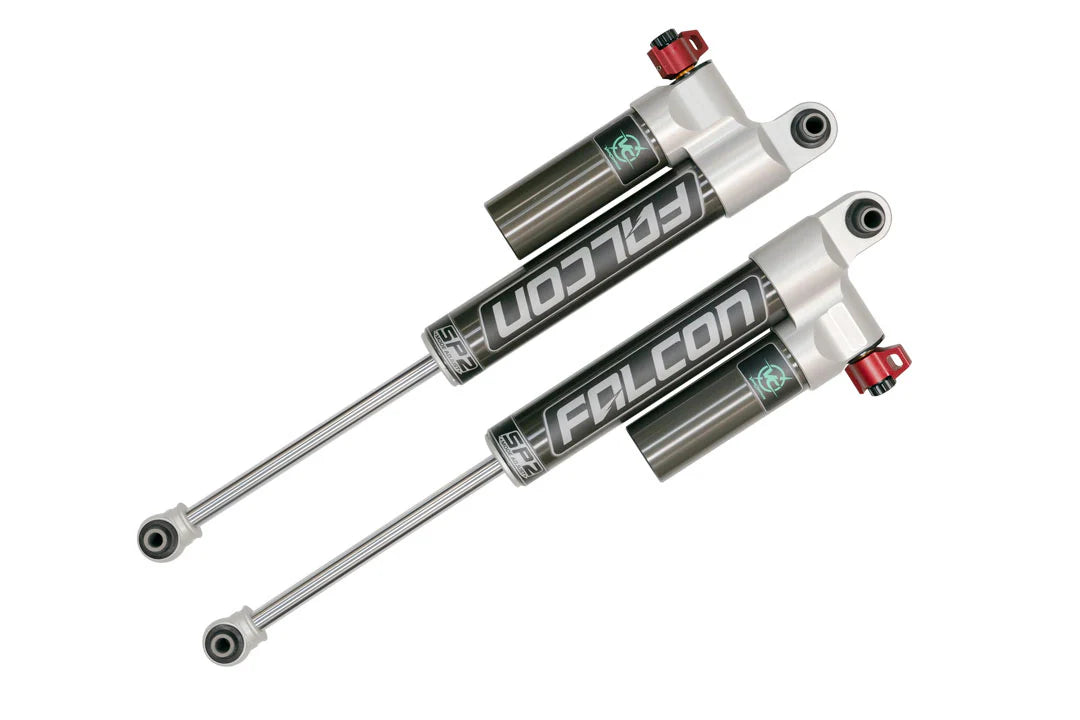

- Tuned Falcon 3.3 SP2 Adjustable Rear Reservoir Shocks (1 pair)

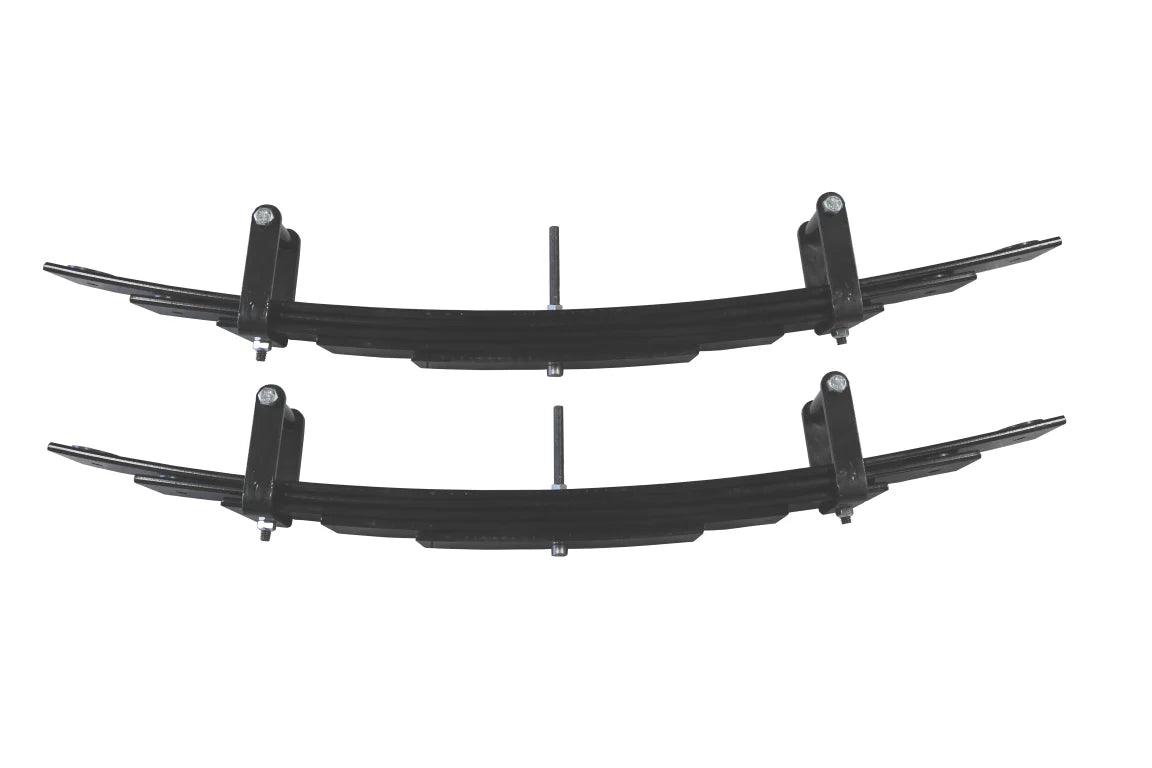

- Rear 5-Leaf Mini-Spring Pack and Bump Stop Spacers
- High Clearance Rear Shock Brackets
Fitment Guide
MODEL: TRANSIT SINGLE REAR WHEEL
YEAR: 2015-PRESENT
DRIVE TYPE: RWD
>>COMPLETE WHEEL AND TIRE FITMENT GUIDE<<
>>DON'T KNOW YOUR VANS WEIGHT? USE THE CAT SCALE LOCATOR<<
NOTE: Van must be professionally aligned after lift kit installation! Adverse tire wear and driving characteristics will result if van is not properly aligned.
Documents: Van Compass 2015-2017 Ford Transit RWD - Stage 4 Topo 2.0 System
2013+ Transit Topo Front Kit Installation Instructions
2013+ Transit Rear Falcon 3.3 Installation Instructions
2013+ Transit High Clearance Shock Brackets Installation Instructions
2013+ Transit Rear Leaf Pack Installation Instructions
Falcon 3.3 Shock Settings Guide
Video: Van Compass 2015-2017 Ford Transit RWD - Stage 4 Topo 2.0 System
Vehicle fitment
- Product type
- Suspension system
- Vehicle
- Ford Transit
- Platform
- SRW
- Years
- 2015-current
- Summary
- Fits 2015-current Ford Transit SRW with RWD. Confirm vehicle model, year range, drivetrain/configuration, loaded vehicle weight, wheel offset/backspacing, clearances, suspension setup before ordering. Van must be professionally aligned after lift kit installation! Adverse tire wear and driving characteristics will result if van is not properly aligned..
Fitment FAQ
What does this Van Compass 2015-2017 Ford Transit RWD - fit?
This Van Compass 2015-2017 Ford Transit RWD - fits 2015-current Ford Transit SRW vans with RWD.
Is this product vehicle-specific?
This is a vehicle-specific suspension system for 2015-current Ford Transit SRW with RWD. Van must be professionally aligned after lift kit installation! Adverse tire wear and driving characteristics will result if van is not properly aligned.. Confirm model, year range, drive type, mounting points, measurements, clearances, and installation requirements before ordering.
What should I verify before ordering?
Confirm vehicle model, year range, drivetrain/configuration, loaded vehicle weight, wheel offset/backspacing, clearances, suspension setup before checkout.
What installation details matter?
Confirm vehicle model, year range, drivetrain/configuration, loaded vehicle weight, wheel offset/backspacing, clearances, suspension setup before ordering. Use professional installation when safety-critical, structural, electrical, fuel, water, or suspension work needs to be verified.
Who is this product best for?
This suspension system is intended for Ford Transit camper van conversions, RV upgrades, overland builds, and mobile installations where the listed fitment details match.
