VWD Universal Overlander Bunk Window 36-3/4" x 13-1/8" O.D. (OVR3511)

Typically ships in 5-7 business days. Shipping calculated at checkout.

$ 269.95 ~~$ 279.95~~

Sale

Pickup available at Denver Warehouse - Will Call

Usually ready in 24 hours

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

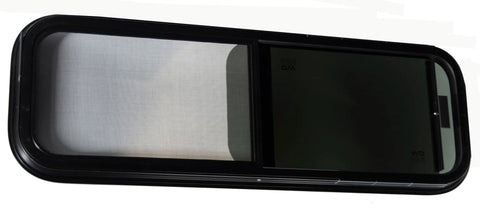

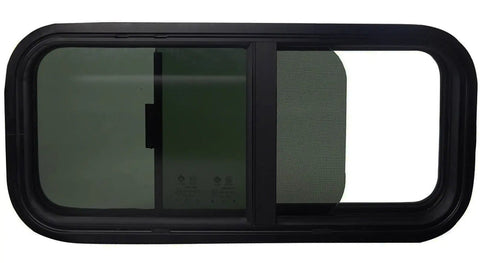

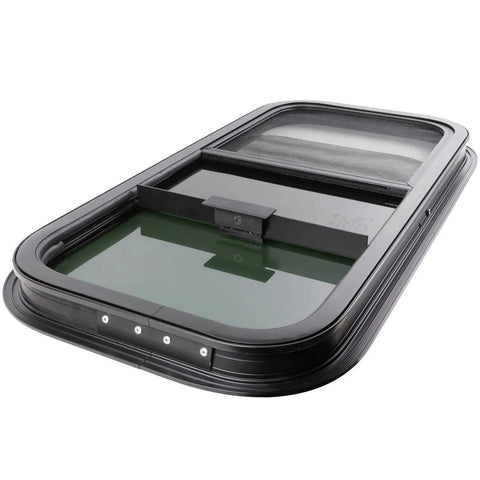

VWD Universal Overlander Bunk Window 36-3/4" x 13-1/8" O.D. (OVR3511) is a flat half-slider bunk window with solar privacy glass and a black aluminum frame. It adds light and airflow to the bunk or rear cargo area of a camper van and can be installed on either side of the vehicle.

This window only installs on flat walls or low curve radius vehicles such as the 2007+ Mercedes Sprinter, 2014+ Ram ProMaster, and 2015+ Ford Transit. It will not work with older Chevy and Ford models that have deeper curve side window panels.

Key Features: VWD Universal Overlander Bunk Window 36-3/4" x 13-1/8" O.D. (OVR3511)

A few details that matter for fit and installation.

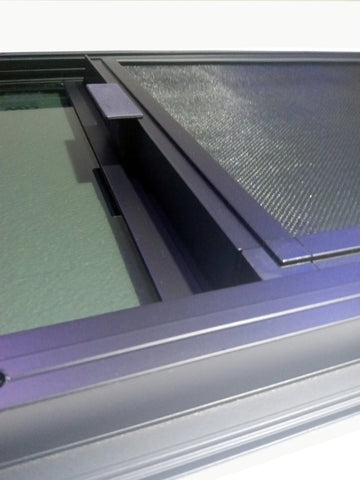

Half-slider design with a fixed bug screen
Solar privacy glass with a 17% UV rating
Clamp ring installs on 1/8" walls and doubles as a trim ring
Drainage system on the top and bottom of the window; plugs are included for the top drains once you have decided the window configuration
Installs on either side of the vehicle

What's Included?

Bunk window
Gasket
Clamp ring
Screws
Plugs for the top drains

Note: A clamp-in install also needs the following, which are not listed as included with the window:

Bunk window template
Drill and metal drill bits (1/8" max)
Phillips screwdriver (hand-tighten all screws)
Step bit (3/8"-1/2" at least)
Jigsaw with fine metal blade
Foam or bristle paint brush
Auto paint/primer
Plastic or paper drop cloths
Blue painter's tape
Safety gear: gloves, eye protection, hearing protection, face mask, long-sleeved shirt

For a walkthrough of installing clamp-in bunk windows, see the Van Windows Direct AW3310 Clamp-In Bunk Window Install Guide.

Specifications: VWD Universal Overlander Bunk Window 36-3/4" x 13-1/8" O.D. (OVR3511)

Manufacturer	Van Windows Direct
Fit	Universal fit (flat walls or low curve radius vehicles)
Window Type	Half-slider bunk window
Glass	Solar privacy glass
UV Rating	17%
Frame	Black aluminum
Screen	Fixed bug screen
Overall Dimensions (O.D.)	36-3/4 in. x 13-1/8 in.
Cutout Dimensions	35-7/16 in. x 11-7/8 in.
Installation Type	Clamp ring
Billable Weight	25 lbs
Manufacturer Part Number	OVR3511

Video: VWD Universal Overlander Bunk Window 36-3/4" x 13-1/8" O.D. (OVR3511)

Vehicle fitment

Product type: RV window
Vehicle: Universal vans, RVs, Class A/Class B/Class C RVs, truck campers, trailers, and overland builds
Window type: Fixed or opening window as specified by product listing
Screen: This is an opening window with a sliding screen.
Install type: Clamp-in
Summary: This is a universal-fit window that can be installed in multiple van window configurations. Installer must confirm placement, structure, cutout, and clearance.
Install requirements: This is a clamp-in window installation that only requires the window. Confirm the cutout, clamp ring fit, and mounting clearances before ordering. See the Clamp-in van window install guide.
Fitment exceptions: This is a universal-fit window that can be installed in multiple van window configurations. The installer must confirm correct position, structure, cutout, and clearances before ordering.

Fitment FAQ

What does this camper van window fit?

This camper van window fits Universal vans, RVs, Class A/Class B/Class C RVs, truck campers, trailers, and overland builds.

Is this product vehicle-specific?

This universal-fit window can be installed in multiple van window configurations when the installer confirms placement, structure, cutout, wall thickness, and clearances.

What should I verify before ordering?

Confirm side, window position, cutout dimensions, install type, opening style, wall thickness, screen status, roof height, and wheelbase.

What installation details matter?

This is a clamp-in window installation that only requires the window. Confirm the cutout, clamp ring fit, and mounting clearances before ordering.

Who is this product best for?

This universal-fit window is intended for camper van window upgrades, RV window projects, trailers, truck campers, Class A/Class B/Class C RVs, and overland builds where the installer confirms fitment, install method, and placement.

Do Campervan HQ van windows come with instructions?

Most van windows are sold for DIY van builders and may not include manufacturer instructions because many manufacturers assume installation by someone familiar with van window installation. Check the Campervan HQ van window installation blog for guidance. For CR Laurence van windows, you can also search YouTube for CR Laurence window install videos.

Do van windows require adhesive and primer?

This is a clamp-in van window. Clamp-in windows do not require primer or urethane adhesive because they seal against the van body with weatherstripping, an exterior compression ring, foam gasket tape where specified, or an interior trim ring. You still need an existing opening, so cargo vans without windows require the correct cutout before installation.

Do Campervan HQ van windows ship for free?

Most van windows do not ship free because large windows often require truck freight or special handling. When available, warehouse pickup can reduce or refund shipping costs. For large multi-item orders, contact Campervan HQ for an individual quote.

What should I check when a van window is delivered?

Inspect the window shipment before the delivery driver leaves. If there is damage, have the driver note it on the Bill of Lading and provide a signed copy. Without signed damage notation at delivery, Campervan HQ may not be able to make a shipping damage claim.

What is the return process for damaged or defective van windows?

For delivery damage, Campervan HQ needs a signed Bill of Lading showing the damage and photos of the damage. For a defective van window, Campervan HQ needs photos of the defect and will request a Return Authorization. In either case, re-package the window in the original box and tape the invoice number or return authorization number to the outside of the box.
