Let's Breakdown the Products Used in Our Campervan HQ Van:

At Campervan HQ we know van builds.

We not only offer a great selection of campervan parts we know them well and test them thoroughly in our own van builds too.

Take a look at our latest Campervan HQ van build and product details linked below:


Basic Details:

2020 Mercedes Sprinter 2500

144" WB, High Roof

VS30 2WD

Graphite Gray

3.0-liter OM642 CRD Turbodiesel Engine with 220A Alternator

Campervan HQ

Campervan HQ Campervan Upfitters

Van Overview:

  • Premium Interior with Factory Swivel Seats
  • 7” Touchscreen and Apple CarPlay/Android Auto Compatibility
  • Tow Hitch
  • Rear Camera
  • Adaptive Cruise Control
  • Park Assist
  • All Electric Build -- No Propane!
  • Off-Grid Solar Power System
  • 30-Gallon Freshwater Tank
  • Hot Water Heater
  • Exterior shower
  • Two-Burner Induction Cooktop
  • Seats 4
  • Sleeps 2 in Cabin
  • 12V Rooftop RV Air Conditioner
  • Rooftop 350W Solar Panels
  • Roofvent Fan
  • Custom Wheel and Tire Package
  • Flarespace Panel Bed System
  • Overhead Cabinetry
  • Beetle-Kill Pine Ceiling
  • Marathon Fabric Wall Panels

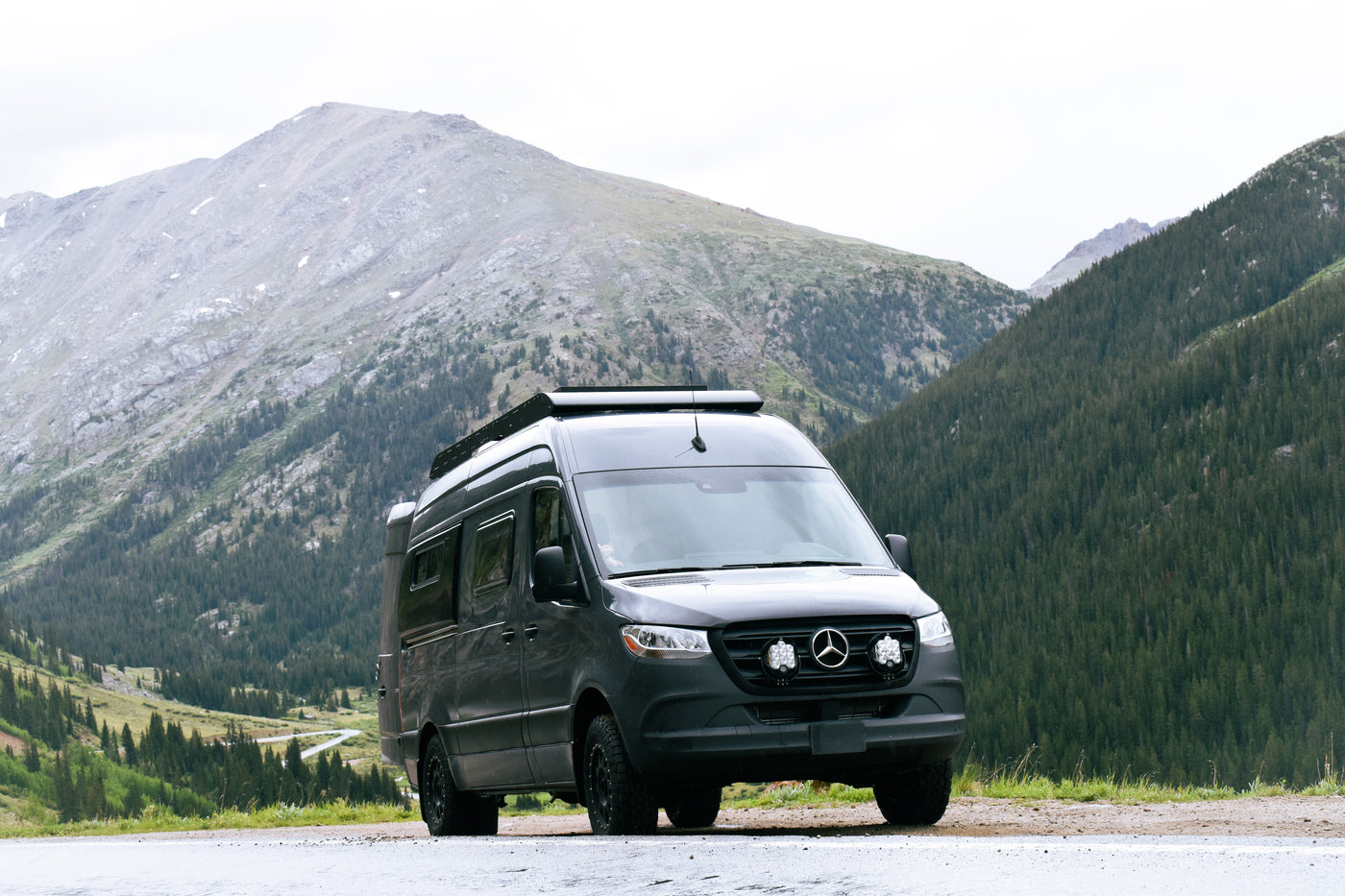

 Campervan HQ Van


Electrical System:

  1. 300 Amp-hour 12V lithium battery bank with Battle Born lithium iron phosphate batteries
  2. Victron Energy MultiPlus 12/2000 inverter/charger
  3. Victron Energy 100/30 MPPT solar charge controller
  4. 2 x 30A Victron Energy Orion Tr DC/DC chargers for 60A charging from alternator
  5. Victron Energy GX Touch 50 7” full-color touchscreen control panel shows all system components at a glance
  6. Roof mounted 350W Monocrystalline Solaria XT solar panel




  1. Multi-layered insulated and soundproofed
  2. Planar 2D 7000 BTU diesel-powered air heater with digital display, tapped into main fuel tank
  3. Flarespace Ultimate Bundle with Flarespace rear quarter camper van body flares with High-Tech trim rings
  4. 5” luxury mattress
  5. Flarespace 2.0 lightweight wooden panel bed system
  6. Interior LED light strips, touch-controlled LED puck lights in each flare
  7. Dometic RTX2000 12V rooftop air conditioner, only draws 20A@12VDC on eco mode, rated for 9800 BTU
  8. Roofvent fan with remote
  9. 12V water pump
  10. 2nd-Row Bench seat with 3-point seat belts
  11. Arctic Tern Dual-Pane 450x900mm acrylic windows with screen & blind assembly, fully opening for the best ventilation and comfort in any conditions
  12. CRL VW1033L and VW1033R half-slider bunk windows installed into flares
  13. Decked pull-out drawer system with two large 6’ drawers
  14. Shore Power Connection
  15. Bosch Tronic 3000T electric point-of-use hot water heater
  16. Scandvik 12106 exterior recessed shower
  17. Furrion 2- burner induction cooktop
  18. Nova Kool R4500 4.3 cubic foot 12VDC refrigerator/freezer




  1. Tourig Airliner Sprinter roof rack with integrated front spoiler, fully configurable with moveable crossbars
  2. Incredibly bright pair of Baja Designs LP9 off-road driving lights mounted on front grille, 11000 lumens each to turn those dark backroads into daytime
  3. Aluminess Driver side rear door Ladder, Tire/Box Carrier

 Campervan HQ RTX2000 Van AC



There's a million ways to personalize a van build to your own needs and desires, and we love offering products that allow DIYers like us the ability to customize their build design.

Be sure to click through the products linked here to visit our product listings.

Campervan HQ, VAN BUILD, Upfitting Gear, Van conversion gear, van windows

Watch the full Campervan HQ van tour here:
