AM Auto Mercedes Sprinter (2007+) Passenger Rear Quarter Screened Half-Slider Window 170″WB (MS06-R3L-HSS P)
Note: All AM Auto Window packages must be opened and checked for damage and missing parts within 21 days of receipt.

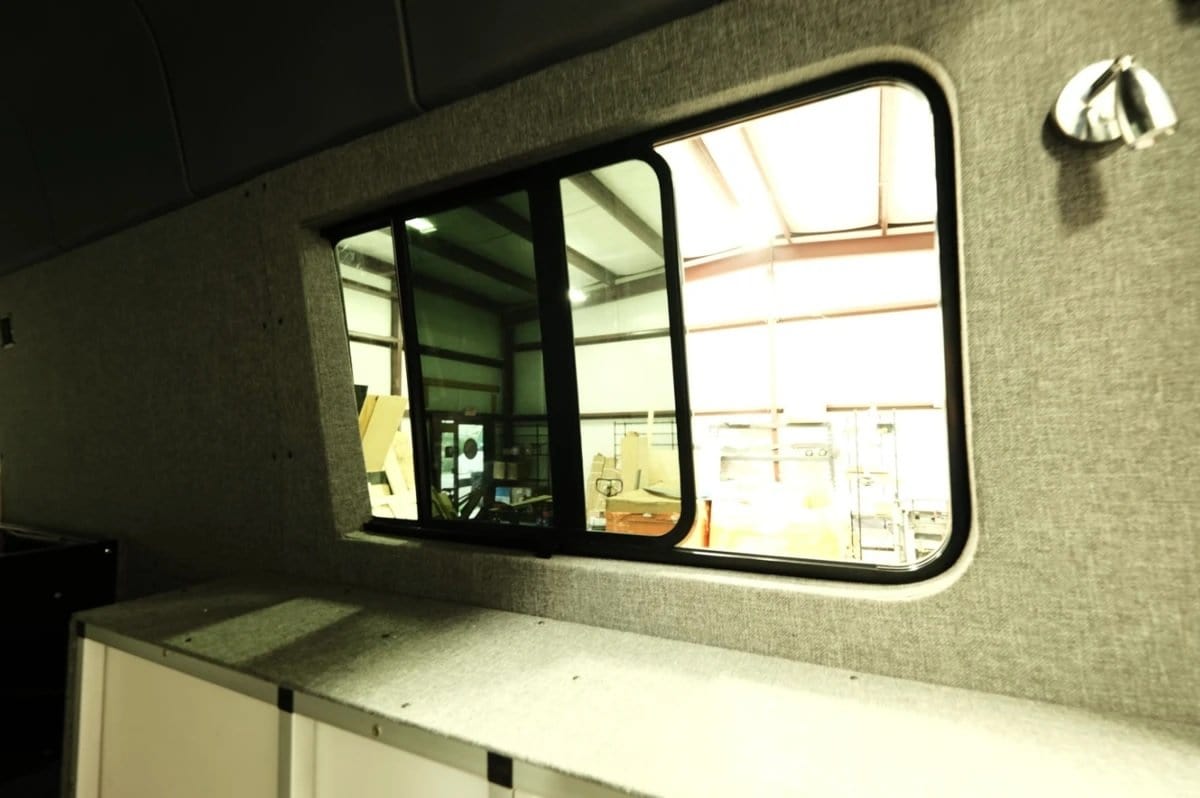

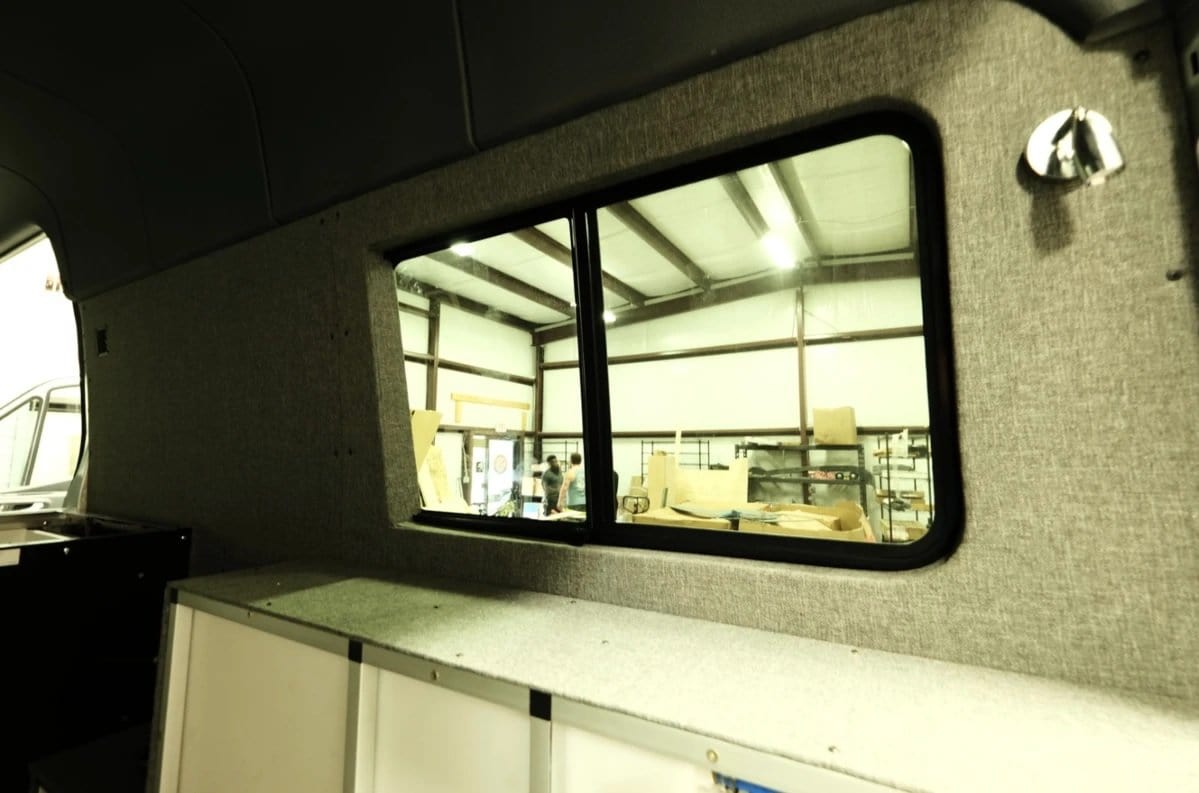

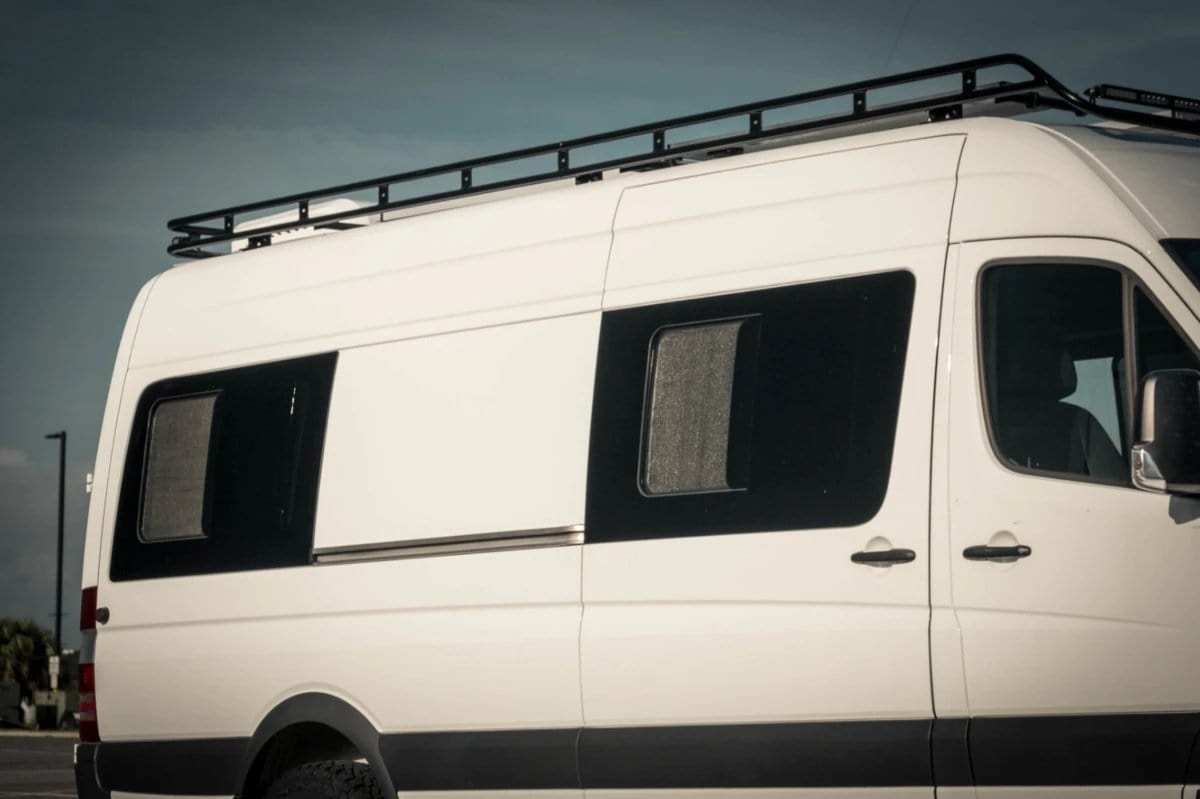

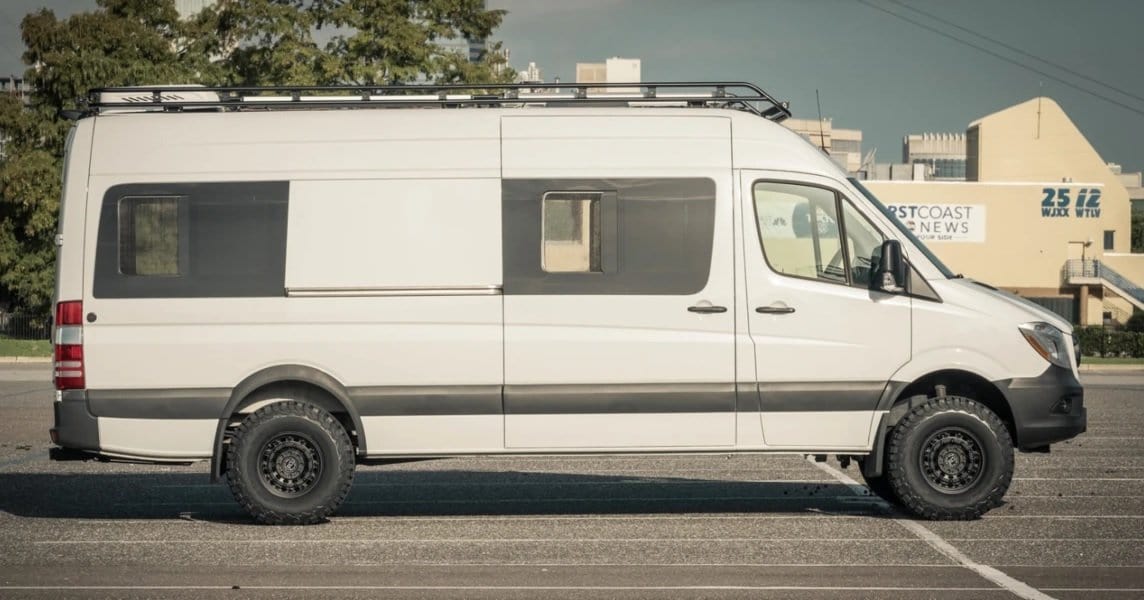

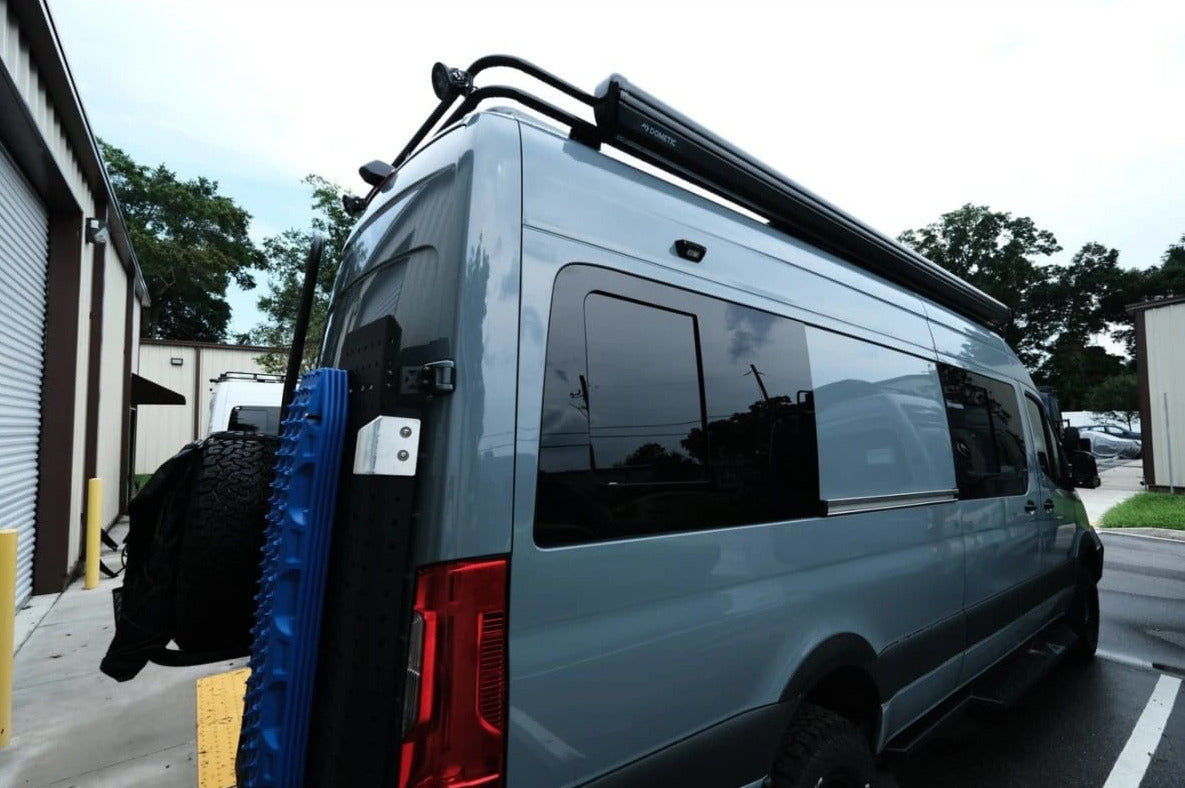

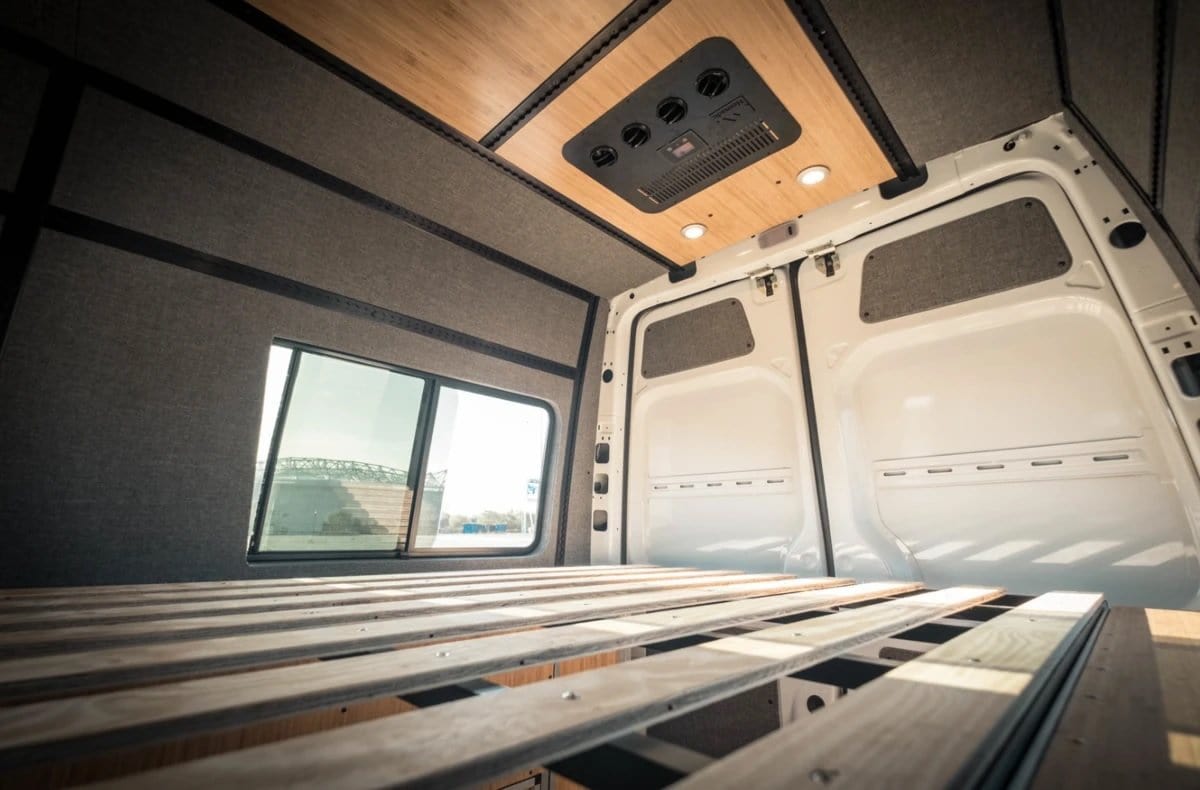

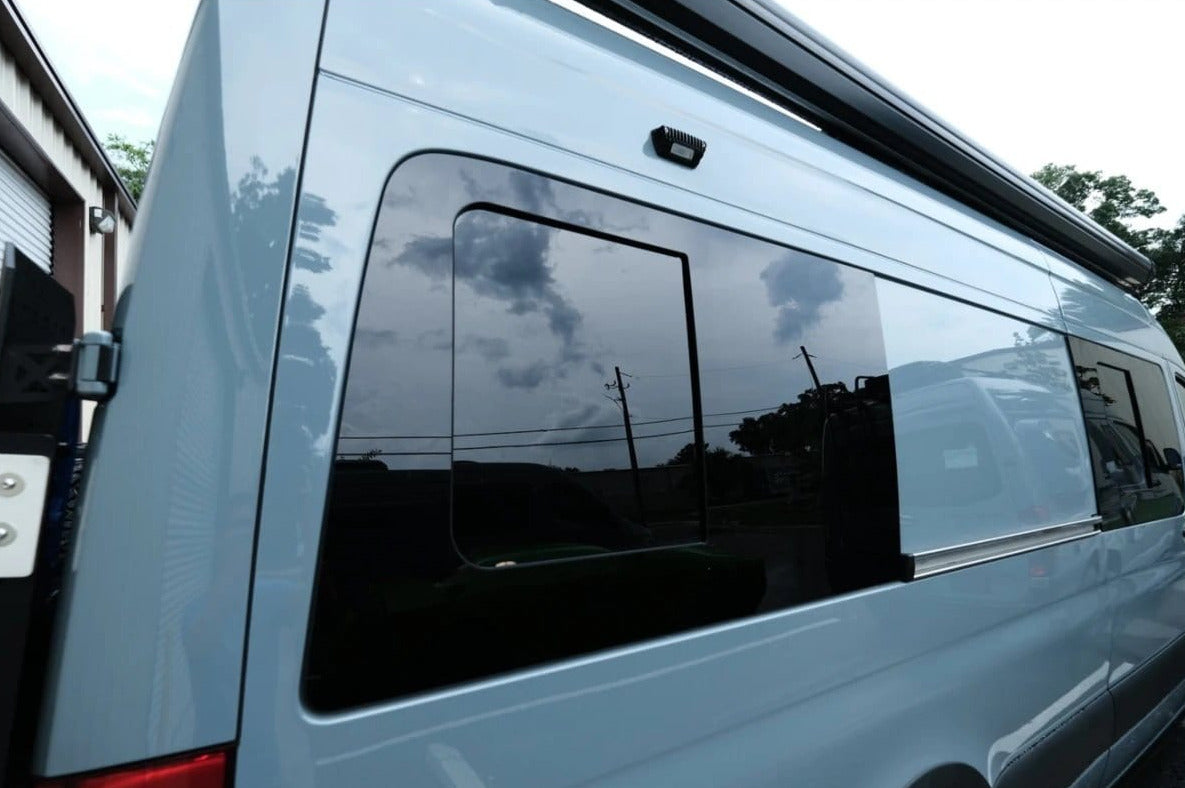

Looking for an opening camper window for your Mercedes Sprinter camper van? The modern, stylish AM Auto Mercedes Sprinter (2007+) Passenger Rear Quarter Screened Half-Slider Window 170″WB (MS06-R3L-HSS P) is designed to fit the factory window cutout on Mercedes Sprinter van models. This sleek single-pane glass window has solar privacy glass bordered by a black ceramic frit, with an inset sliding glass panel with a clean matte black interior frame. The panel has a push-button latch and a removable sliding screen.
Note: These windows are large and can only be shipped via truck freight. These windows are shipped from AM Auto and cannot be picked up from the manufacturer. If you cancel your order after your windows have shipped, you will pay the shipping costs plus a 30% restocking fee.
Key Features: AM Auto Mercedes Sprinter (2007+) Passenger Rear Quarter Screened Half-Slider Window 170″WB (MS06-R3L-HSS P)
The AM Auto Mercedes Sprinter (2007+) Passenger Rear Quarter Screened Half-Slider Window (170″WB) meets the following specifications:

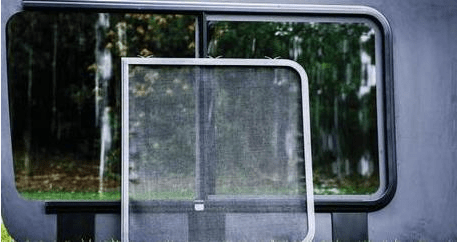

- Single-pane glass automotive window with a sliding panel and removable sliding screen, locking latch
- Designed to fit 2007+ Mercedes Sprinter 170" WB
- Manufactured by AM Auto
- Glass UV rating = 17%
- Solar privacy glass with 17% tint (also known as "factory tint"), matches Mercedes factory glass and conforms to AS3 standard
- Meets European and North American standards, tested and certified to ECE R43 and North American (US DOT FMVSS 205/Transport Canada CMVSS 205) standards
- 6 Months warranty.
Note: This is a bonded (glue-in) window, which requires surface primer and urethane adhesive for installation.

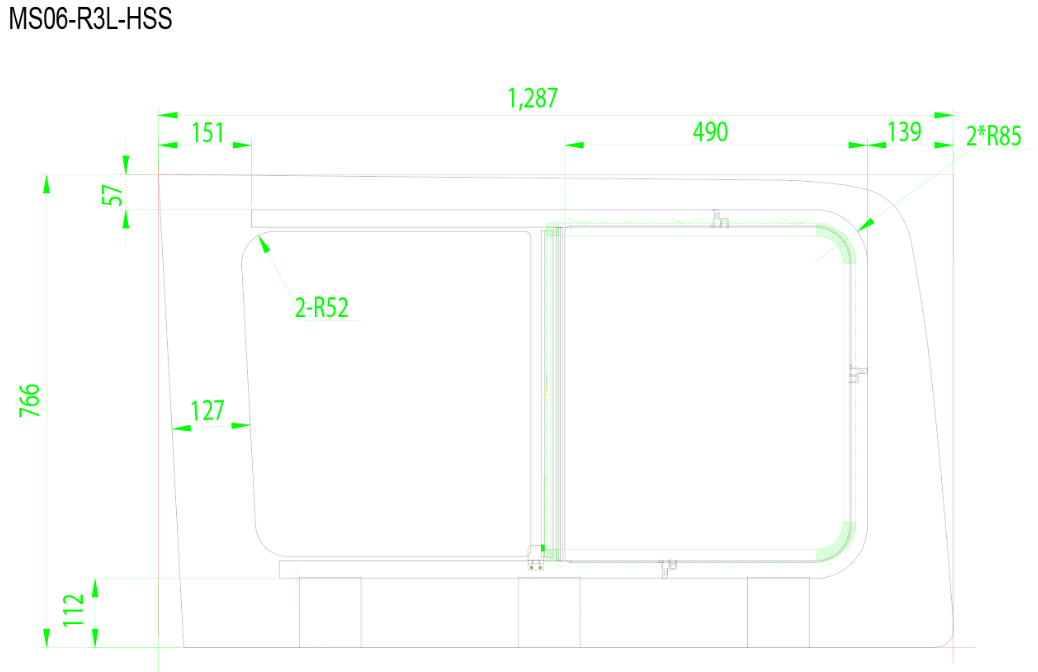

Specifications: AM Auto Mercedes Sprinter (2007+) Passenger Rear Quarter Screened Half-Slider Window 170″WB (MS06-R3L-HSS P)
Height (in.) |
30.19 |
Width (in.) | 50.66 |
Weight (lbs) | N/A |
What’s needed to install a bond-in window?
Qty: 1-2 tubes for small and medium size windows.
Qty: 2 tubes for large windows.
CRL Car Window Primer
Qty: 1, 3.4 oz Primer bottle for 4 large windows and 2 small windows.
Qty: 2, 3.4 oz Primer bottles for 6-8 windows(full window set).
Trim lock or window gasket for the cut metal edge. This window's compatible option can be found in this page's Frequently Bought Together section.
Check out our How to Install Bonded Van Windows blog article for more details, or watch the video below.
Video: How to Install Bonded Windows
